LINSN DS852 Double Color LED Display Sender Box for Advertising Walls



Discover Linsn led controller systems for your indoor and outdoor video walls at best prices.

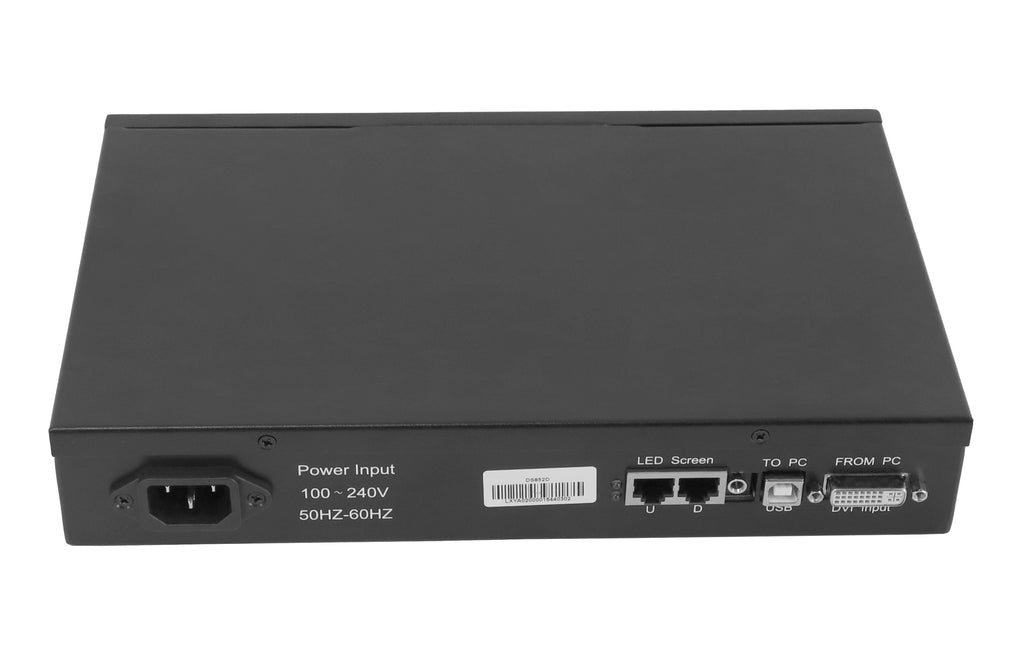

LINSN DS852 Double Color LED Display Sender Box.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Function of LINSN DS852 Double Color LED Display Sender Box :

  1. 5V, 2A The outer box contains one DS802 sending card and a power supply.
  2. There is space for an industrial PC, including special mother board and hard disc. With extra mouse 16 grades brightness control.
  3. Dimension: 40.5cm by 20.7cm by 5.9cm
  4. Features of LINSN DS852 Double Color LED Display Sender Box:
  5. Point by point correction by card (box) correction (DS 802 inside)
  6. Point by point correction to support a single point, 2 * 2 point, 4 * 4 and 8 * 8-point four correction mode, the maximum correction of 6144
  7. points / module, red, green and blue 256. By card (box) correction is used to display the various inter-tile color correction, red, green and blue 256.
  8. Smart identification card function
  9. The intelligent identification program can identify the two-color, full-color, virtual lighting and other various driver board a variety of scanning and a variety of signals toward the recognition rate of 99%, a card in hand, to do the screen worry.
  10. 65536 (64K) grayscale any setting:
    The customer may never display grayscale to 65536 (64K) adjust the gray, so your display to achieve the best effect.
    Arbitrarily set the refresh rate, phase locking, synchronization function
  11. The refresh rate from 10Hz-3000Hz arbitrarily set the refresh rate lock-in feature allows the display refresh locked to an integer multiple of
    the computer monitor refresh rate to eliminate image tearing to ensure that the image perfect reproduction. Phase-locked range of 47Hz-76Hz.
  12. Double large load area
    4096 (4K), full-color grayscale 180Hz refresh rate, the maximum with a 512 * 128, is the sixth generation of the product 256 * 128 twice,
    full-color static 16384 (16k) grayscale 300Hz, with a 160 * 64 the sixth generation of 80 * 64 twice. (Note: the driver board on the high clock 30MHz)
  13. Dual-cable hot backup function
    Receiver card A, B, two-port can be used as input or output ports, two computers can be used to simultaneously control a screen when a computer problem, another computer to automatically take over a computer network can also be used control line, when a cable problem, and the other a cable automatically take over, so that the display of the normal work to be given maximum protection.
  14. Multi-screen synchronization and composition of functions
    To support a control send a card with multiple screens can be any combination of the working status of the multi-block-screen synchronized display, independent play, etc. through shortcut keys to quickly switch.
  15. 256 automatically adjust the brightness
    256 automatic brightness adjustment feature lets you display brightness adjustment is more effective.
  16. Program online upgrade feature
    If the display card receiving procedures need to upgrade, simply open the power of large screen LED Studio can upgrade process, do not need to receive the card demolition away from the big screen can be upgraded.
    To break through the traditional concept of the DIP switch.
    DIP switch design, all settings are set via the computer.
  17. Test function.
    Receiver card integration test, then do not send cards to test the display, slash, gray, red, green, blue, full brightness, etc. a variety of
    test mode.
  18. Long transmission distance.
    Transmission up to 170 meters (measured) to ensure the transmission of 140 meters.
