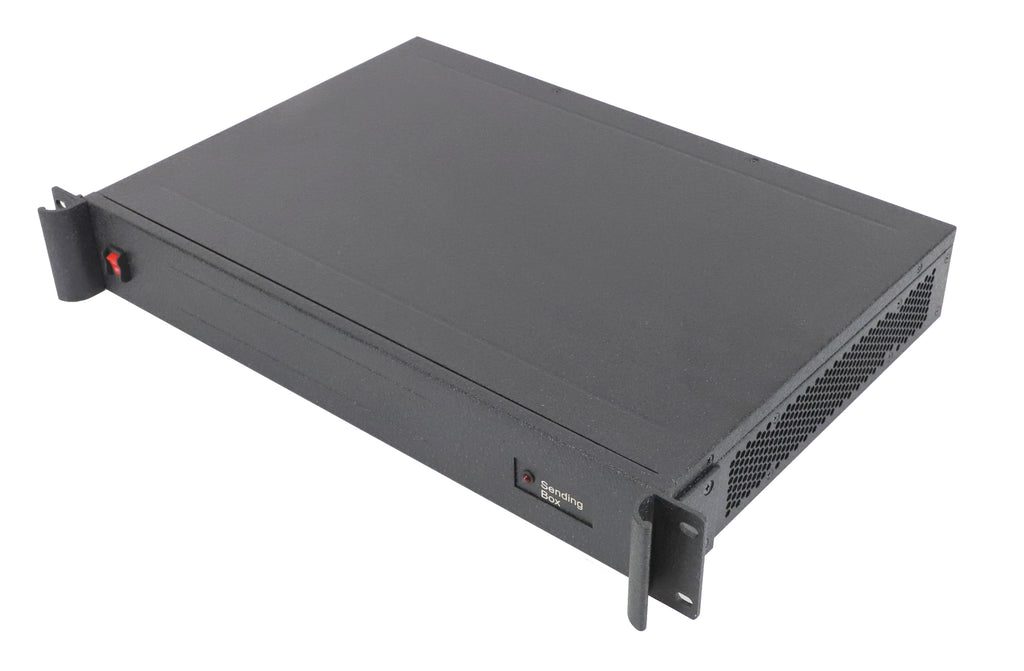

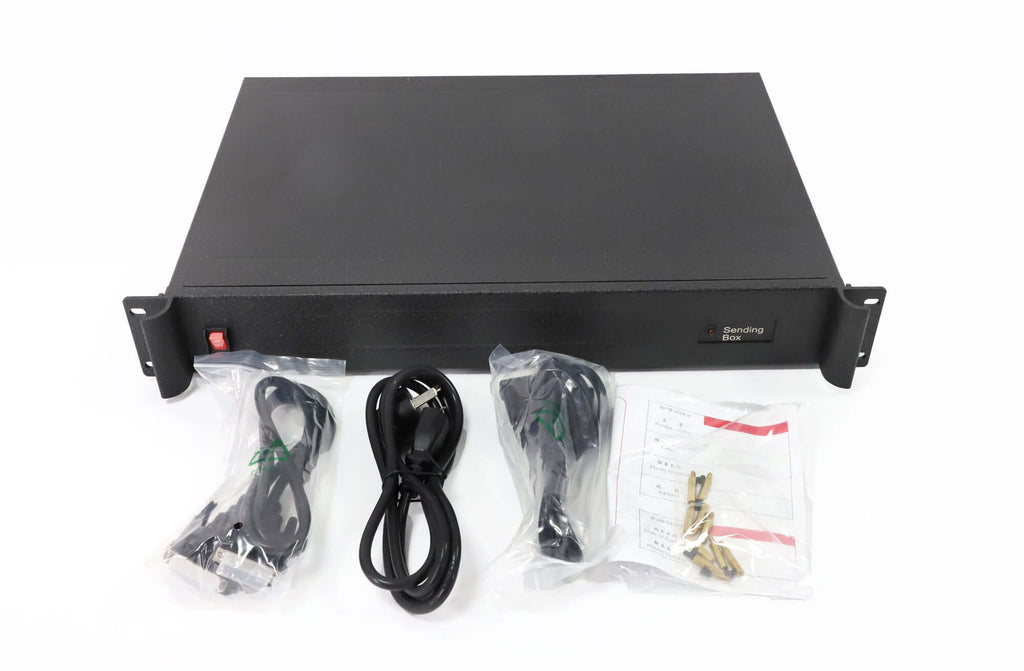

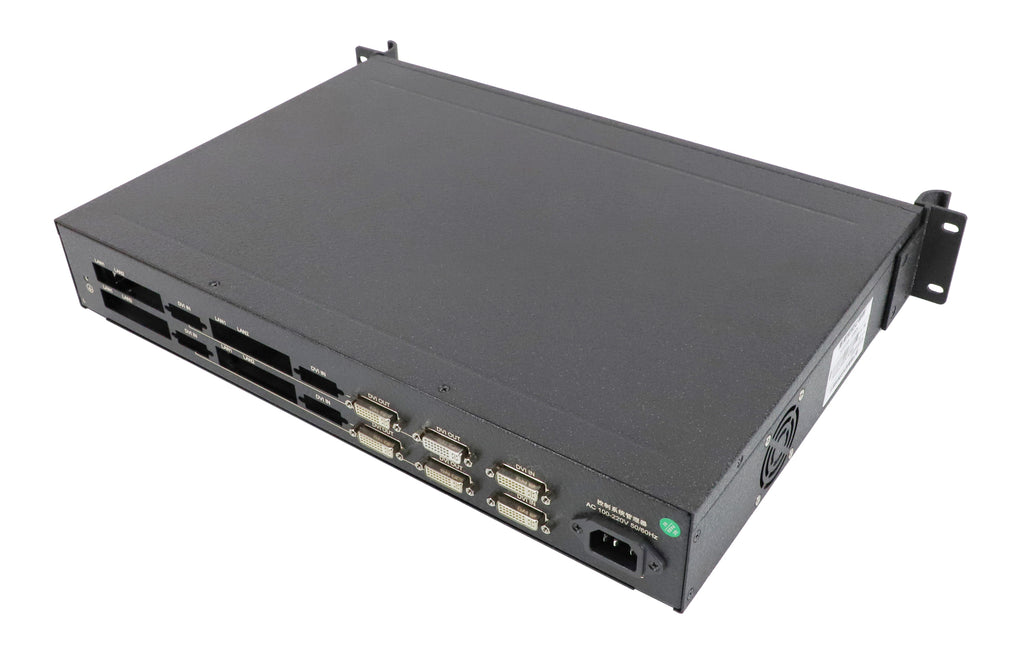

KYstar KS604 Large Screen Sending Box For LED Screen Wall

$70.00

The KYstar KS604 Large Screen Sending Box For LED Screen Wall is a management terminal device for sending cards. It is an independent management unit that facilitates the management of power and signals on the site of multiple sending cards, in line with international and industry standards. It comes with two one-two splitters and supports free copying of 2.6 million resolutions.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

The KYstar KS604 Large Screen Sending Box For LED Screen Wall is a management terminal device for sending cards. It is an independent management unit that facilitates the management of power and signals on the site of multiple sending cards, in line with international and industry standards. It comes with two one-two splitters and supports free copying of 2.6 million resolutions.

KYstar KS604 Large Screen Sending Box For LED Screen Wall Features:

Independent power supply and installation of 4 small sending cards
Two independent DVI splitters, one divided into two
1.5U chassis for easy installation

KYstar KS604 Large Screen Sending Box For LED Screen Wall Parameter:

Input
Type Qty Spec.
DVI 2 Standard DVI-D socket 8+1Pin;DVI1.1;TMSD Level,Single pixel input 65MHz Bandwidth;Support resolution 560×1024 @60Hz        1536×1536 @60Hz2048×1152 @60Hz        1920×1200 @60Hz1920×1080 @60Hz        1680×1050 @60Hz1600×1200 @60Hz        1440×900 @60Hz1600×1200 @60Hz        1440×900 @60Hz1360×768 @60Hz         1280×1024 @60Hz1280×800 @60Hz         1024×768 @60Hz and 2560×1024 @60Hz Custom resolution within range
Output
Type Qty Spec.
DVI-D 4 Standard DVI-D socket 8+1Pin;DVI1.1;TMSD Level,Single pixel input 65MHz Bandwidth;Support resolution 560×1024 @60Hz        1536×1536 @60Hz2560×1024 @60Hz        1536×1536 @60Hz2048×1152 @60Hz        1920×1200 @60Hz1920×1080 @60Hz        1680×1050 @60Hz1600×1200 @60Hz        1440×900 @60Hz1400×1050 @60Hz        1366×768 @60Hz1360×768 @60Hz         1280×1024 @60Hz1280×800 @60Hz         1024×768 @60Hz and 2560×1024 @60Hz Custom resolution within range
Power input 100-240V AC~50/60Hz 1.0A
Operating
temperature
-20℃~85
Working
humidity
0℃~40
Dimension 483×340×67mmL×W×H
Weight 5KG
Power
consumption
50W

Additional information

Weight(kg)

4

Manufacturer

Kystar
