XINGXIU DSP800A-3242 LED display dual output power supply
$70.00
DSP800A-3242 is a conversion device which converts 100VAC-240VAC power to 4.2V and 3.2VDC Dual channel power.
This led power supply is widely used in led displays and other led electronics.
Direct factory supply.
Good prices. stable quality.
- Description
- Additional information
- Reviews (0)
- Inquire Now
Description
DSP800A-3242 is a conversion device which converts 100VAC-240VAC power to 4.2V and 3.2VDC Dual channel power. It takes advanced LLC Control technology, with precise control, input and output isolation, makes the device safe and efficient, and of good reliability.
In addition, The conversion device mainly applies to the field of electronics, LED display, security monitoring, military-industry, communications, electricity, lighting display, industrial equipment etc.
Parameters of XINGXIU DSP800A-3242 LED Display Dual Output Power Supply
Input Electrical Characteristics
| Input voltage range | 90Vac to 264Vac |
| Normal voltage range | 100Vac to 240Vac |
| Frequency range | 47Hz—63Hz |
| Max input ac current | 8.5Amax@100Vac |
| Inrush current (cold state) | <60A@230V |
| Efficiency (full load) | 90%TYP@230Vac，FULL LOAD |
| Leakage Current |
Less Than 3 mA, |
| Normal output power | 676W |
| Input Fuse | T10AL/250Vac |
| Power Factor | PF>0.95/230Vac |
| Safety Certification | CE,UL,FCC,CCC,CB |
Output Voltage & Current Regulation
|
Output |
Voltage |
Voltage |
Voltage |
Load |
Min. |
Rated |
Peak |
| V1: 4.2 | 4.2~4.6V | ±3% | ±2% | ±2% | 0A | 100A | 110A |
| V2: 3.2 | 3.2~3.6v | ±3% | ±2% | ±2% | 0A | 80A | 88A |

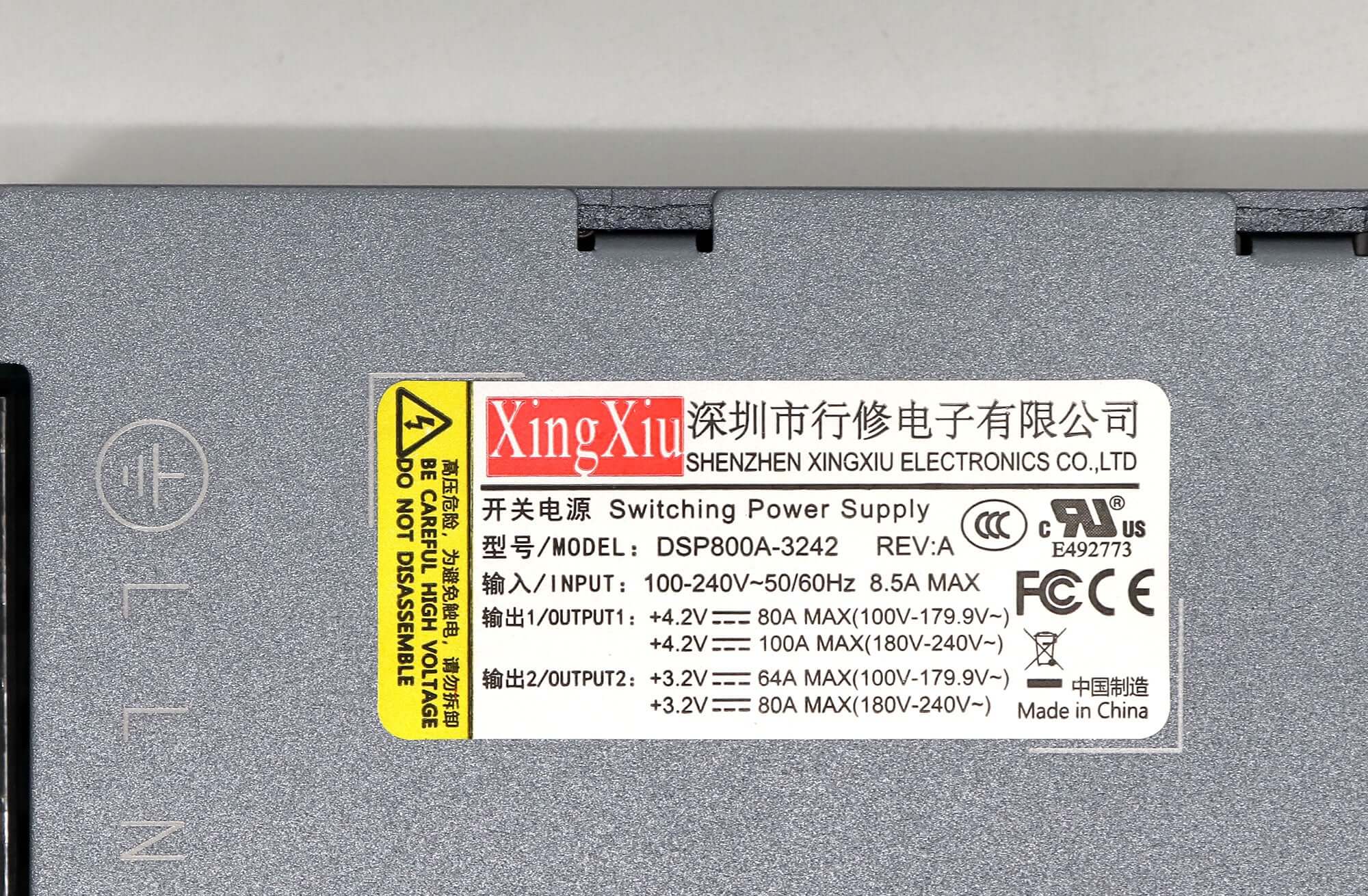

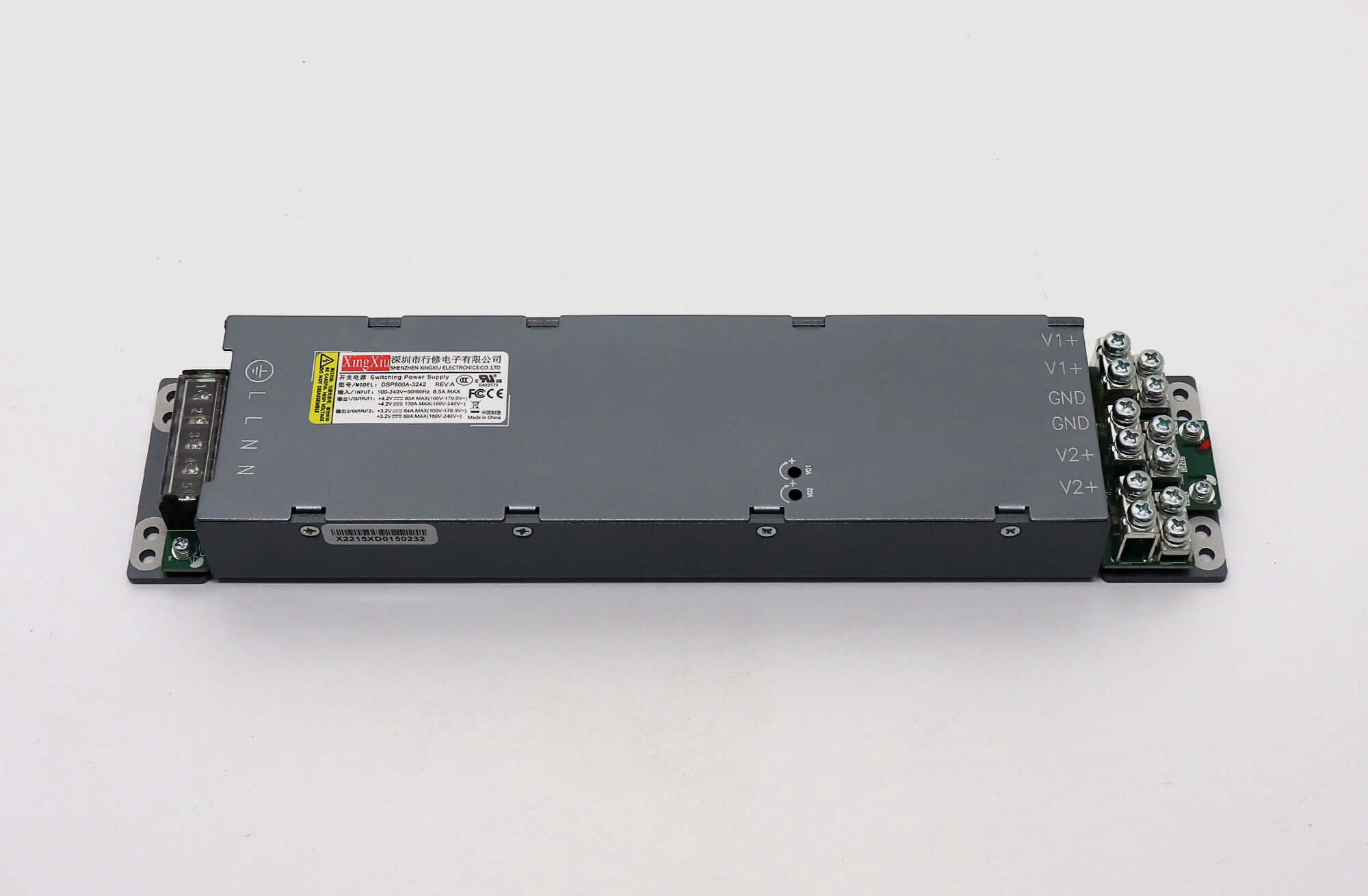

More Pictures of XINGXIU DSP800A-3242 LED Display Dual Output Power Supply
Additional information
| Brand | HITE Led with website https://www.hdledisplay.com |
|---|---|
| Product Code | XINGXIU-DSP800A-3242 |
