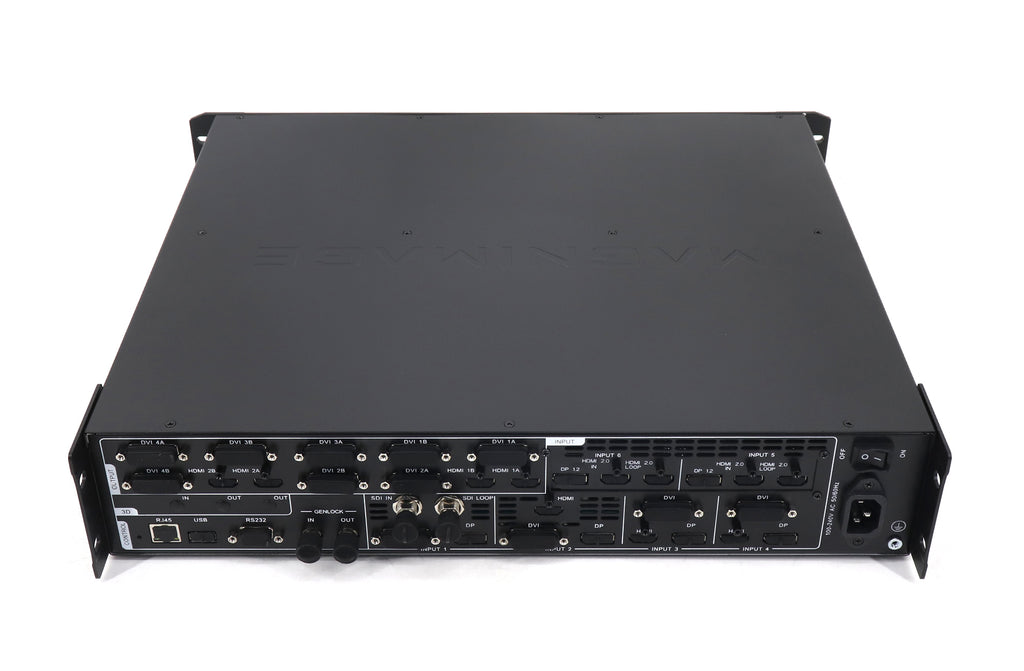

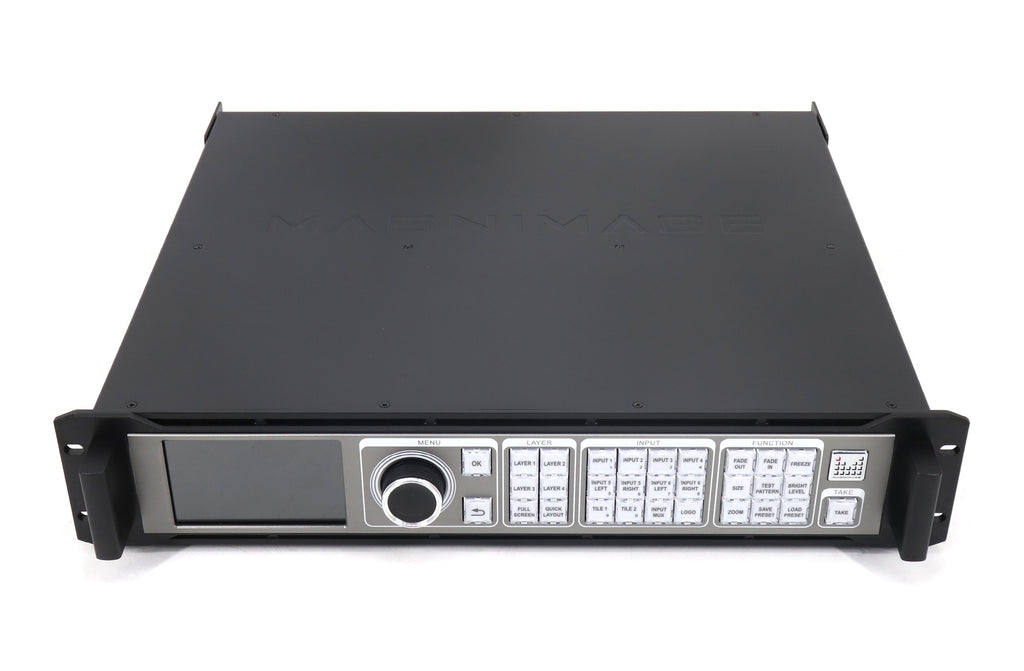

Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor



Buy led display panel systems from China supplier.

Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor:

*Standard input: 12 ports, divided into 4 groups, each group includes 3 inputs, using one out of three, total inputs are SDI×1, HDMI×3, DVI×4, DP×4.

Resolution specification: SDI (3G SDI: 1080P/I and below) , HDMI, DVI and DP, all support EDID within 4K×1K/60Hz.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor Features:

8K x 2K mosaic outputs: W4000 has two output modes: DVI output and HDMI output. The outputs are divided into two groups, each group including 4 DVI and 2 HDMI 2.0.
Multiple input ports: DVI-D (4K×1K/60Hz), DP1.1, HDMI1.4, SDI .
Different working modes are available: Mosaic mode, HDMI Switcher mode, Backup mode.

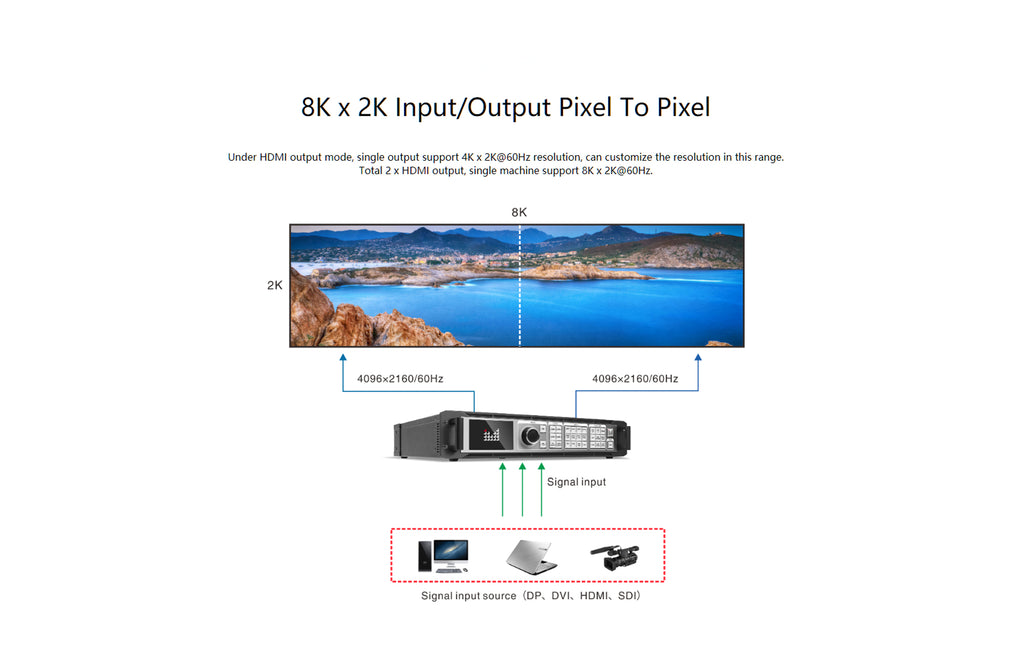

Mosaic mode: 8K×2K/60Hz input and output pixel-to-pixel display.
HDMI Switcher mode: 4K preview/switch, seamless switching between 3 layers and 3 layers.
Backup mode: input signal hot backup or manual backup and seamless switching between input signal or tile input.
Multi-machine cascading mosaic synchronously, and Take seamless switching.
HDR 10.
10 BIT processing.
HDCP1.4 & 2.2 compliant.
Touched screen operation.
Supports saving & loading of maximum 20 presets, and time tasks.
Supports setting of brightness, Gamma, contrast, saturation, color temperature etc., low light level and high gray level.
Built-in test pattern.
Supports pixel point acquisition, real-time display of RGB values of pixels at any position in the output window.
Supports PC software control, network port and RS232 connection.
Supports LOGO, chroma key function.
Supports USB upgrade.

Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor Parameter:

Quantity Resolution
DVI 4 3840×1080/60Hz and EDID management
DP 4 3840×1080/60Hz. 840×2160/30Hz and EDID management
HDMI 3 3840×1080/60Hz and EDID management
SDI 1 480i/60Hz    576i/50Hz    720p/60Hz    1080i/50Hz/60Hz  1080p/50Hz/60Hz(3G SDI)
Extend Input Indication
Quantity Resolution
DP1.2 2 4096×2160/60Hz 680×1080/60Hz and EDID management
HDMI2.0 2 3840×2160/60Hz and EDID management
Each group extendable 1xDP, 1xHDMI, 1xHDMI loop, maximum 2 groups
Output Indication
Quantity Resolution(single output??/td>
DVI 4×2 1024×768/60Hz                               1280×1024/60Hz                               1024×768/120Hz
1280×720/59.94Hz                        1280×720/60Hz                                  2048×1920/60Hz
1600×1200/60Hz                            1600×1200/60Hz-reduced           1680×1050/60Hz
1920×1080/59.94Hz                     1920×1080/60Hz                               1920×1080/50Hz
1920×1200/60Hz                            1920×1280/60Hz                                2048×1152/60Hz
1024×1280/60Hz                            1536×1536/60Hz and EDID
HDMI 2×2 1920×1080/60Hz                            1920×1080/120Hz                             3840×1080/60Hz
3840×2160/30Hz                            3840×2160/60Hz                                4096×1280/60Hz
4096×1280/30Hz                            4096×2160/60Hz                                2560×1080/120Hz
2560×1440/90Hz and EDID
Genlock IN×1、OUT×1
Input power supply
100-204V AC 50/60Hz
Power consumption 90W
Operating temperature 0~45°C
Overall dimension 482.6×446.3×92.5mm
