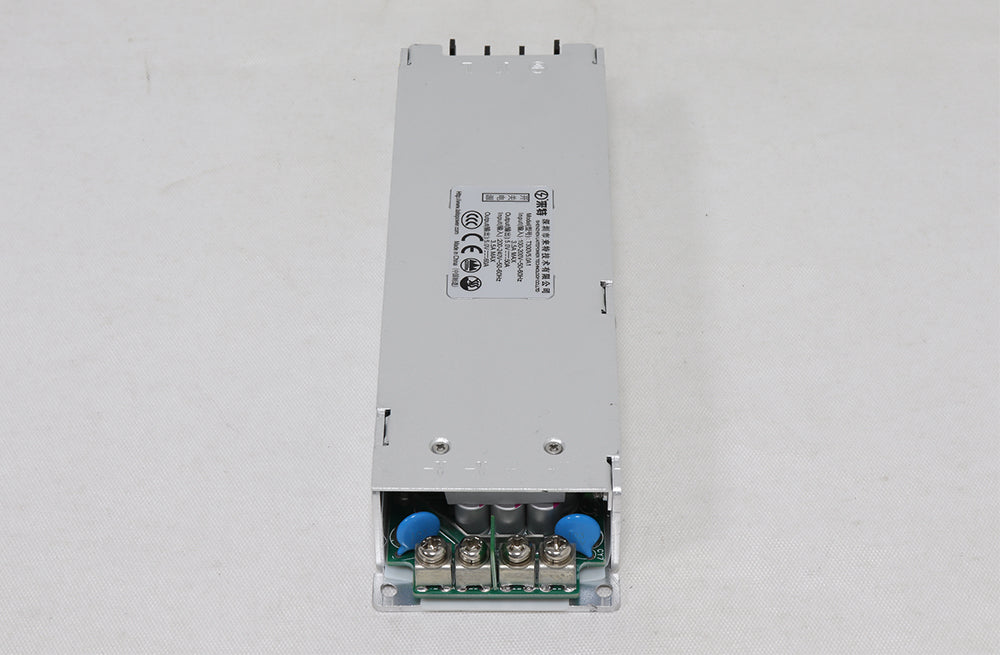

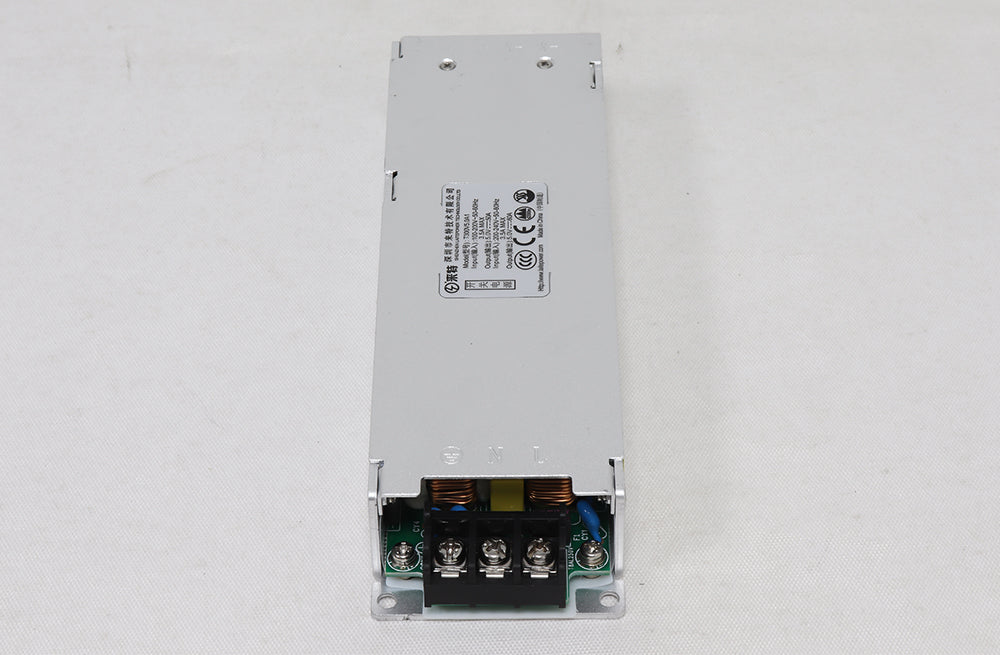

LaitePower T300V5.0A1 wide voltage LED display power supply 300W
$33.20
Purchase LaitePower T300V5.0A1 wide voltage LED display power supply 300W from top China led display manufacturer at best prices, for your movable or fixed led video walls.
- Description
- Additional information
- Reviews (0)
- Inquire Now
Description
LaitePower T300V5.0A1 Wide Voltage LED Display Power Supply 300W Features:
Input voltage:90Vac to 264Vac
Protection function
Operation temperature range: -10℃ to +70℃
High Efficiency, long life and high reliability
PCB using conformal coating process
LaitePower T300V5.0A1 Wide Voltage LED Display Power Supply 300W Parameter:
| Model | T300V5.0A1 |
| Input voltage | 100-240Vac/47-63HZ |
| Output power | 300W Max |
| Working temperature | -30 ° C – 60 ° C |
| Storage temperature | -40 ° C – 80 ° C |
| Power factor | 0.95/230Vac |
| Size | Length 180*Width 55* Height 30 |
| Insulation voltage | I/P-O/P:3.0KVac |
| I/P-PG:1.5KVac | |
| O/P-PG:0.5KVac | |
| Leakage current | <1ma (Vin:230) |
| Protection function | Input undervoltage & Overload protection |
| Short circuit protection | |
| Over temperature protection | |
| Cooling method | Self-Cooling |
Additional information
| Brand | HITE Led with website https://www.hdledisplay.com |
|---|---|
| Product Code | Laite-T300V5-0A1 |
