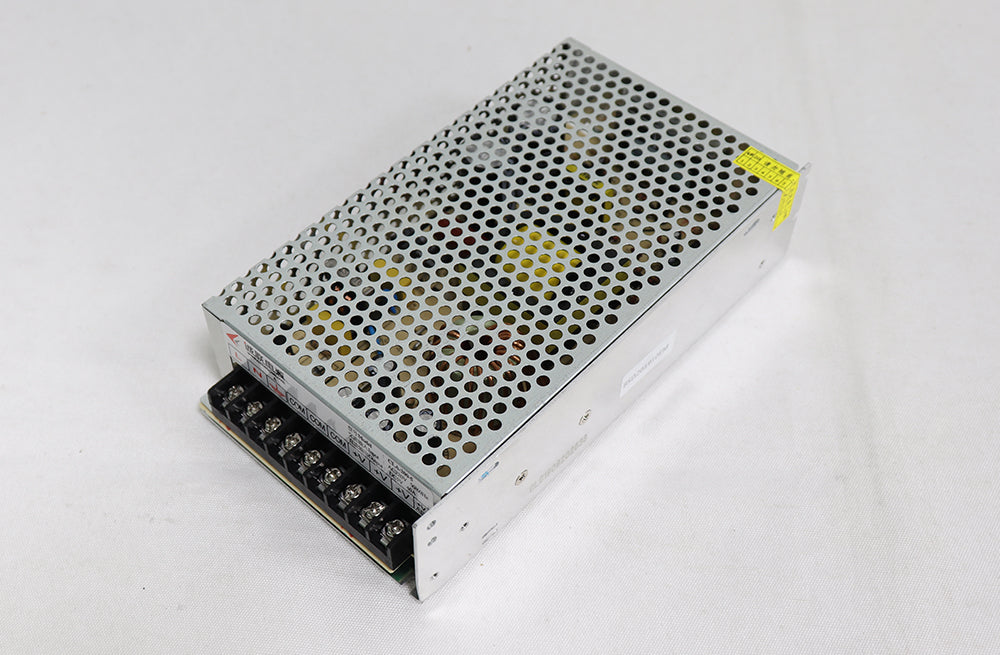

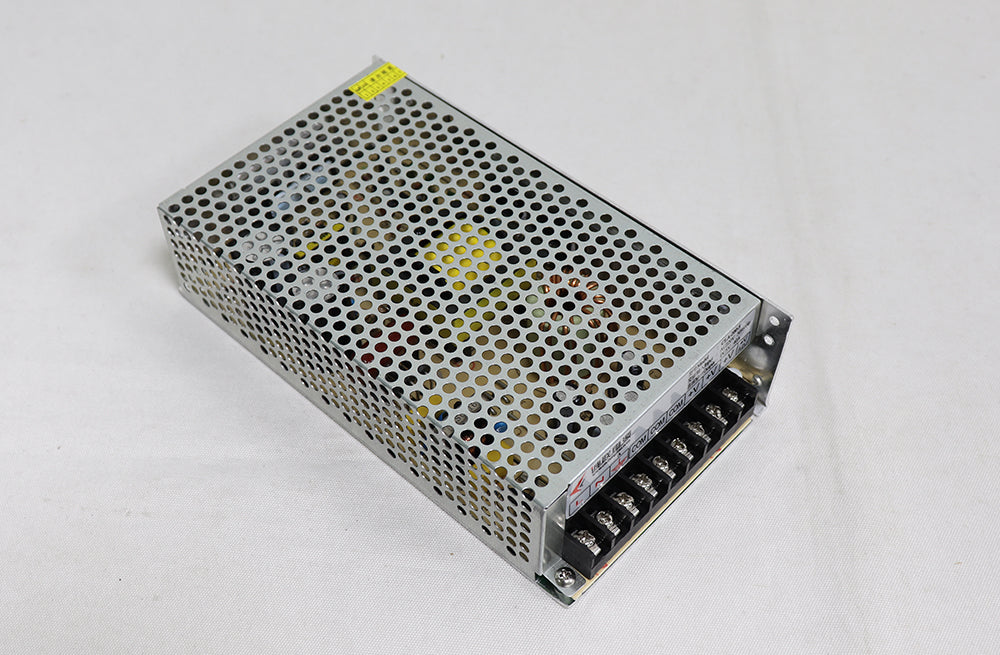

CZCHENGLIAN CLA-200-5 full color LED screen power supply

CZCHENGLIAN CLA-200-5 Full Color LED Screen Power Supply Parameter:

Input

• Input Voltage Range: 90-132Vac, 190～264Vac switchable
• Input Frequency Range:  50/60
• AC Current: ≤1.8A(100Vac, full load)

Output:

• Dc Voltage Range:5 V
• Rated Current: 40A
• Max power: 200W
• Ripple & Noise: ≤150mVp-P
• Efficiency (Typ):≥77% Vin=220Vac,
• Voltage Tolerance:±2%
• Power on delay time<2S

Protection：

• OCP(50-60A)
• SCP(Lock out, recovery after restart)

Safety&EMC：

• EN60950-1,EN55022
• Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
• Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
• Leakage current<0.75mA(AC240V)

Others:

• Working Temperature:-10℃ ～ +50℃
• Cooling: ventilate by air convection
• Working Humidity:5%～90%RH
• Storage temperature: -20℃～+85℃
• Dimension (L*W*H):199×110×50mm
• Carton Dimension: 43*29.5*26.5CM
• Packing:20PCS/ 15KG/CTN/0.04CBM
• MTBF:50K hours (MIL-HDBK-217F (25 )
