Description
ColorLight S2 LED Panel Sending Box Features??/strong>
·DVI signal input port
·Audio input port with synchronous transmission via Ethernet cable
·Maximum input resolution: 1920*1200 pixels
·Loading capacity: 1.31 million pixels
·Maximum Width: 2560 pixels, Maximum Height: 2560 pixels
·2 Gigabit Ethernet port outputs support screen arbitrary splicing
·Dual USB ports for high speed configuration and easy cascading
·Improved grayscale performance at low brightness
·Wide working voltage with AC 100 ~ 240V
·Compatible with all series of Colorlight receiving cards
ColorLight S2 LED Panel Sending Box Parameters??/strong>
|
Video Source Interface |
|
| Interface Type | DVI |
| Input Resolution | 1920*1200 pixels |
| Frame Rate | Standard 60Hz, and auto adjustment |
|
Gigabit Ethernet Outputs |
|
| Quantity | 2 ports |
| Net Port Control Area | Each net port is 1280*512 pixels (or equivalent area). 2 net ports are 1280*1024 pixels (or equivalent area)
Single card max width up to 2560 pixels, and 2560 pixels in height |
| Transmission Distance | CAT5??40Mï¼›CAT6??70Mï¼›Optical fiber: No limitation |
| Net Port Cascading | Up-down or left-right cascading defined by user |
| Transmission Mode | Frame mode (Gigabit Ethernet) with CRC |
|
Connection equipment |
|
| Receiving Card | Compatible with all series of Colorlight receiving card |
| Peripherals | Multifunction card, optical fiber transceivers, gigabit switcher |
|
Parameters |
|
| Size | 275*198*44 mm |
| Input Voltage | AC 100V-240V |
| Power Consumption | 15W |
| Weight | 2.1kg |
|
External interfaces |
|
| Configuration Port | USB |
| Real-time Configuration | Support |
| Brightness and Chromaticity Adjustment | Support |
| Smart Detection System | DVI interface detection |
| Real-time Clock | Includes real-time clock |
|
More functions |
|
| Multi-Screen Control | Multiple screens with different sizes can be controlled simultaneously |
| Background Playing | Support background playing (Extended mode) |
| Audio Transmission | Support |
| BER Detection | Ethernet cable quality and malfunction detection |

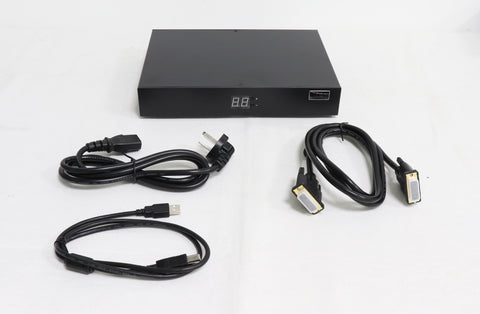

More Pictures of ColorLight S2 LED Panel Sending Box:
