Description
Distributed feedback laser diode ( DFB LD ); Single mode twin-core fiber ( TCF ); Up to 20Gb/s data links; Multi-source package with full-duplex LC connector; Hot-pluggable ; Eye safety designed to meet laser class 1;

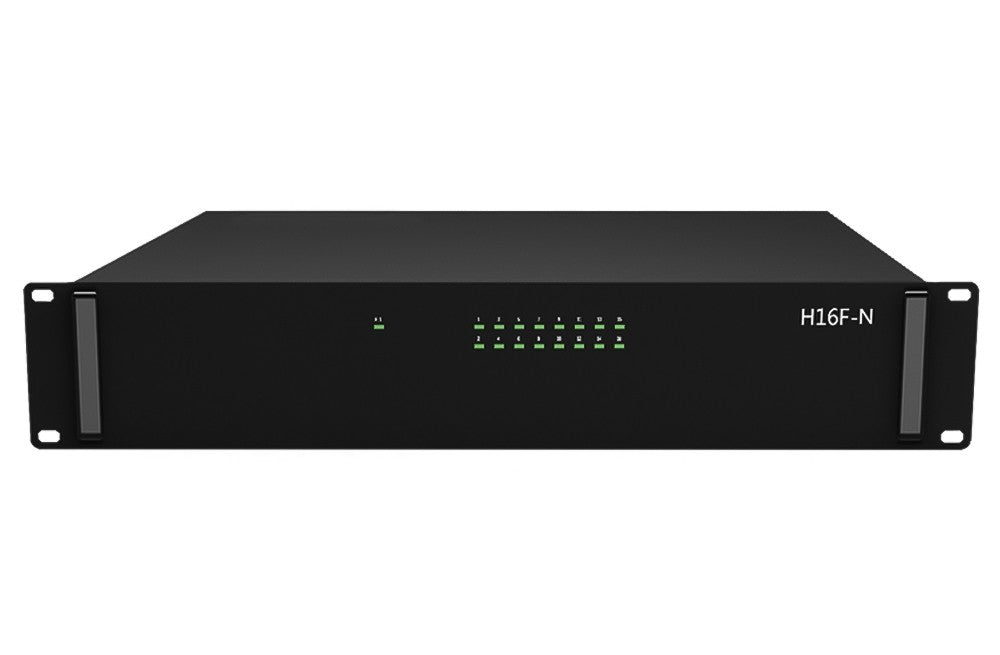

Colorlight H16F-N LED Screen Video Wall Fiber Optic Transceivers Features:
·Distributed feedback laser diode ( DFB LD )
·Single mode twin-core fiber ( TCF )
·Up to 20Gb/s data links
·Fiber module with 1Km transmission distance
Fiber module with 20Km transmission distance ( optional )
·Multi-source package with full-duplex LC connector
·Hot-pluggable
·Eye safety designed to meet laser class 1
| Parameters Description | |
| Storage Temperature | -40 ~85 ??/td> |
| Operating Temperature | 0 ~70 ??/td> |
| Power | AC 100~240V |
| Data Rate | 20Gb/s |
| Working Mode | Single-Mode |
| Transmission Distance | Fiber module of 1Km, fiber module of 20Km ( optional ) |
| Fiber Interface Type | Full-duplex LC |
| Laser | DFB |

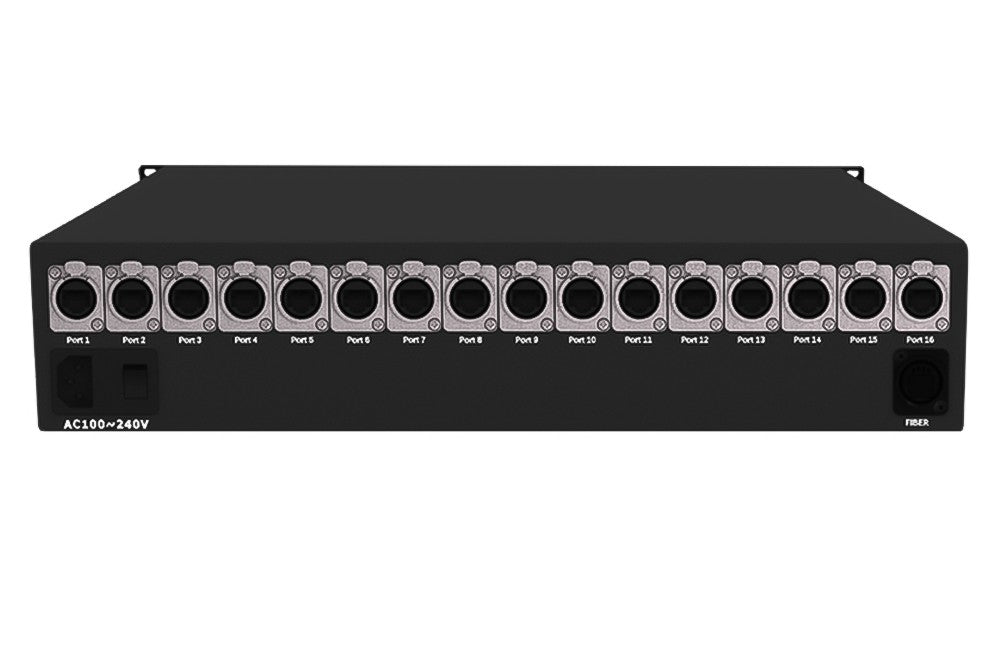

| Gigabit Ethernet Port | 16 Neutrik Gigabit Ethernet ports |
| Fiber Interface | 2 ports*10G bandwidth |
