P10 outdoor DIP346 160x160mm LED display screen module
$13.80
P10 outdoor DIP346 160x160mm LED display screen module, outdoor led modules, fit for exterior wall mounted led video walls and stage concert led displays.
3840 υψηλός ρυθμός ανανέωσης, IP65 waterproof, υψηλή φωτεινότητα, can use Novastar, Λοξοτομώ, Colorlight controller systems.
Direct manufacturer supply, good prices.
- Περιγραφή
- Πρόσθετες πληροφορίες
- Ανασκοπήσεις (0)
- Ρωτήστε τώρα
Περιγραφή
P10 Outdoor DIP346 16x16dot 160x160mm LED Display Screen Module Features:
1) Separate driving board ensures good heat dissipation.
2) New developed mold for the plastic covers, hence, smaller module gaps and better screen flatness.
3) Reasonable PCB design makes the module reliable and steady.
4) LED chip is sorted within 2.5nm wave length and 10% color difference. Narrow wave length range and small color difference make perfect color uniformity and brightness conformity.
5) Exact control technology of brightness ratio of red, green and blue basic colors makes perfect white balance performance.
6) Famous constant current IC, ensuring the consistency and stability of the whole screen.
P10 Outdoor DIP346 16x16dot 160x160mm LED Display Screen Module Parameters:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing angle |
Wavelength |
Testing condition |
|
|
Κόκκινος |
SMD3535 |
800-1400mcd |
110/50 |
618-628nm |
25℃,20α |
|
|
Πράσινος |
SMD3535 |
1800-3000mcd |
110/50 |
518-528nm |
25℃,20α |
|
|
Blue |
SMD3535 |
400-600mcd |
110/50 |
465-475nm |
25℃,20α |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
10mm |
|||||
|
Pixel configuration |
DIP346 |
|||||
|
Density |
10,000 pixels/㎡(πραγματικό εικονοστοιχείο) |
|||||
|
Module Resolution |
16εικονοκύτταρο(L) * 16εικονοκύτταρο(H) |
|||||
|
Module Dimension |
160mm(L) * 160mm(H) * 30mm(ρε) |
|||||
|
Driving Mode |
Constant current, 1/4 duty |
|||||
|
Module Mask |
Pure black mask—high contrast screen |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Λάμψη |
≥8,000 cd/㎡ |
|||||
|
Viewing Angle |
110°(Horizontal); 50°(Vertical) |
|||||
|
Best Viewing Distance |
≥10m |
|||||
|
Gray Grade |
16,384 levels for each color |
|||||
|
Display Color |
4.39 Trillion Color |
|||||
|
Ρύθμιση φωτεινότητας |
100 grades by software or automatically by sensor |
|||||
|
Max. Power Consumption |
14 W |
|||||
|
Control System |
||||||
|
Correction Scale Level |
12κομμάτια |
|||||
|
Frame Frequency |
≥60Hz |
|||||
|
Screen Refresh Frequency |
≥1,920Hz |
|||||
|
Gamma Correction |
-5.0～5.0 |
|||||
|
Input Signal |
Composite Video, S-video, DVI, Δίσκο, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Θερμοκρασία εργασίας |
-20～+60 ºC |
|||||
|
Stored Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 ώρες |
|||||
|
MTBF |
5000 ώρες |
|||||
|
Continuous Working Time |
≥72 hours |
|||||
|
Protection Grade |
IP65 |
|||||
|
Out of Control Pixel Rate |
≤0.01% |
|||||

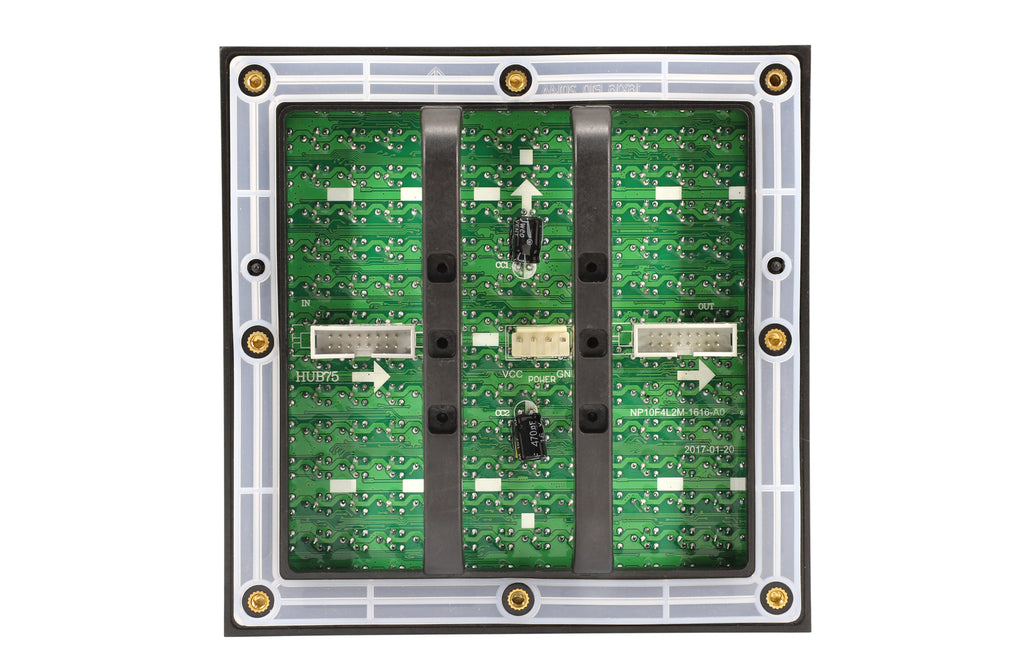

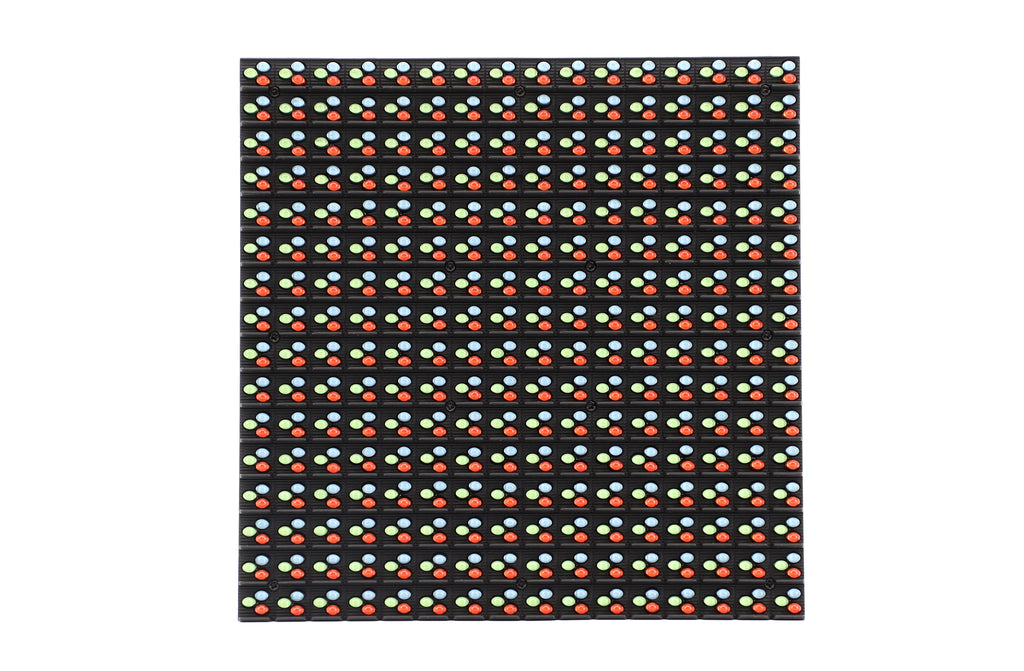

Most pictures of P10 Outdoor DIP346 160x160mm LED Display Screen Module:
Πρόσθετες πληροφορίες
| Μάρκα | Hite LED με ιστότοπο https://www.hdledisplay.com |
|---|---|
| Κώδικας προϊόντος | P10-O4L-1R1G1B16x16 |
