P10 outdoor DIP346 320x160mm LED display screen module
0 έξω από 5
$27.20
P10 outdoor DIP346 320x160mm LED display screen module, outdoor led modules, fit for exterior wall mounted led video walls and stage concert led displays.
3840 υψηλός ρυθμός ανανέωσης, IP65 waterproof, υψηλή φωτεινότητα, can use Novastar, Λοξοτομώ, Colorlight controller systems.
Direct manufacturer supply, good prices.
Διαθεσιμότητα: 600 σε απόθεμα
SKU: LDP-0320
Κατηγορία: Υπαίθριες μονάδες Led
Ετικέτα: P10 outdoor led modules
- Περιγραφή
- Πρόσθετες πληροφορίες
- Ανασκοπήσεις (0)
- Ρωτήστε τώρα
Περιγραφή
P10 Outdoor DIP346 320x160mm LED Display Screen Module Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Κόκκινος | DIP346 | 800-1500mcd | 110°(H); 50°(V) | 618-628nm | 25℃,20α | |
| Πράσινος | 1800-3000mcd | 518-528nm | 25℃,20α | |||
| Blue | 400-600mcd | 465-475nm | 25℃,20α | |||
| Module Parameter | ||||||
| Pixel Pitch | 10mm | |||||
| Pixel Configuration | DIP346 | |||||
| Density | 10,000 pixels/㎡ | |||||
| Module Resolution | 32εικονοκύτταρο(L) * 16εικονοκύτταρο(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 30mm(ρε) | |||||
| Driving Mode | Constant current, 1/4 duty | |||||
| Module Mask | Pure black mask—high contrast screen | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Λάμψη | ≥7,500 cd/㎡ | |||||
| Viewing Angle | 110°(Horizontal); 50°(Vertical) | |||||
| Best Viewing Distance | ≥10m | |||||
| Gray Grade | 14 κομμάτι | |||||
| Display Color | 4.4 trillion colors | |||||
| Ρύθμιση φωτεινότητας | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 40 W | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1,920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, Δίσκο, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable); | |||||
| 20KM(optical fiber cable) | ||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Θερμοκρασία εργασίας | -20~+60 ºC | |||||
| Storage Temperature | -30~+70 ºC | |||||
| Working Humidity | 10%~90% RH | |||||
| Lifetime | 100,000 ώρες | |||||
| MTBF | 5000 ώρες | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP65 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||

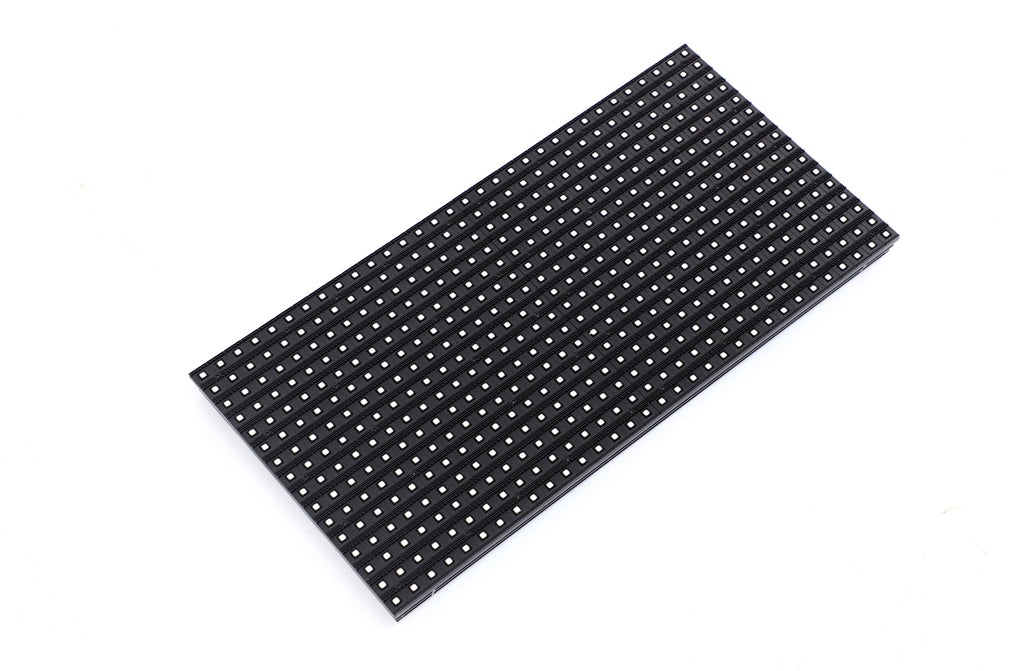

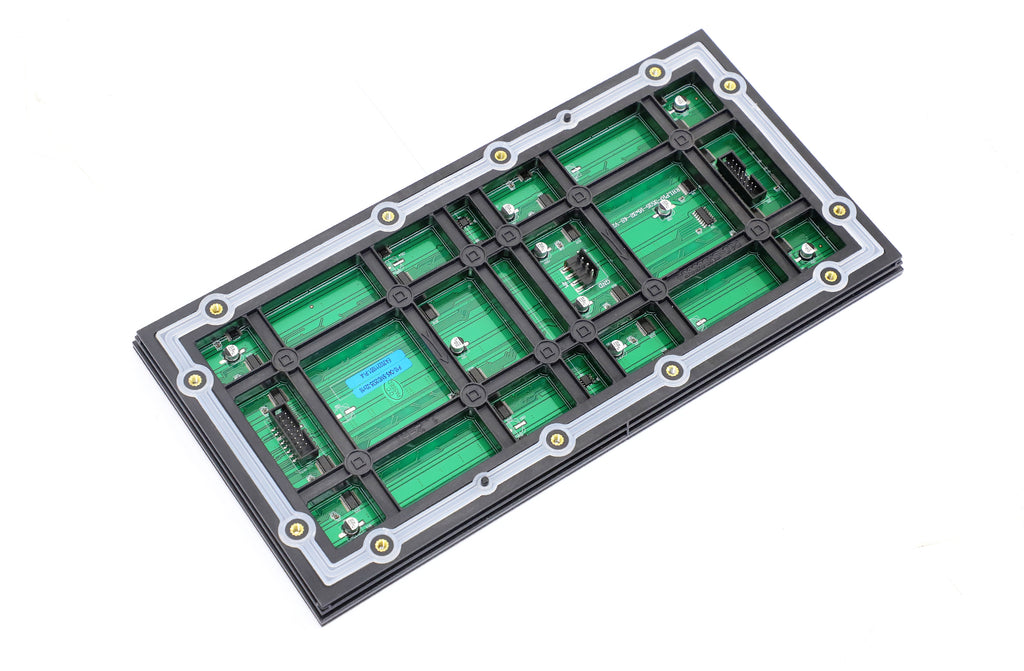

Most pictures of P10 Outdoor DIP346 320x160mm LED Display Screen Module:
Πρόσθετες πληροφορίες
| Μάρκα | Hite LED με ιστότοπο https://www.hdledisplay.com |
|---|---|
| Κώδικας προϊόντος | P10-O4L-DIP346-32×16 |
