outdoor HD P2.5 320x160mm LED screen module
$45.70
outdoor HD P2.5 320x160mm LED screen module, outdoor led modules, fit for exterior wall mounted led video walls and stage concert led displays.
3840 υψηλός ρυθμός ανανέωσης, IP65 waterproof, υψηλή φωτεινότητα, can use Novastar, Λοξοτομώ, Colorlight controller systems.
Direct manufacturer supply, good prices.
- Περιγραφή
- Πρόσθετες πληροφορίες
- Ανασκοπήσεις (0)
- Ρωτήστε τώρα
Περιγραφή
Outdoor P2.5 128x64dot 320X160mm LED Screen Module Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Κόκκινος | SMD1415 | 48mcd | 120° | 622nm | 25℃,8α | |
| Πράσινος | 155mcd | 120° | 526nm | 25℃,5α | ||
| Blue | 20mcd | 120° | 470nm | 25℃,3α | ||
| Module Parameter | ||||||
| Pixel Pitch | 2.5mm | |||||
| Pixel Configuration | SMD1415 | |||||
| Density | 160,000pixels/㎡ | |||||
| Module Resolution | 128εικονοκύτταρο(L) *64εικονοκύτταρο(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 18mm(ρε) | |||||
| Driving Mode | Constant current, 1/16 duty | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Λάμψη | ≥5,000 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥2.5m | |||||
| Γκρίζο επίπεδο | 14 κομμάτια | |||||
| Display Color | 4.4 trillion colors | |||||
| Ρύθμιση φωτεινότητας | 100 grades by software or automatically by sensor | |||||
| Operation Power | AC100-240V 50-60Hz Switchable | |||||
| Max. Power Consumption | 648 W/㎡ | |||||
| Avg. Power Consumption | 216 W/㎡ | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥3,840Hz | |||||
| Input Signal | Composite Video, S-video, DVI, Δίσκο, SDI, HD-SDI | |||||
| Control Distance | 50m(Wifi); 100M (Ethernet cable); 20KM (Optical fiber cable) | |||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Θερμοκρασία εργασίας | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 ώρες | |||||
| MTBF | 5000 ώρες | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP65 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||

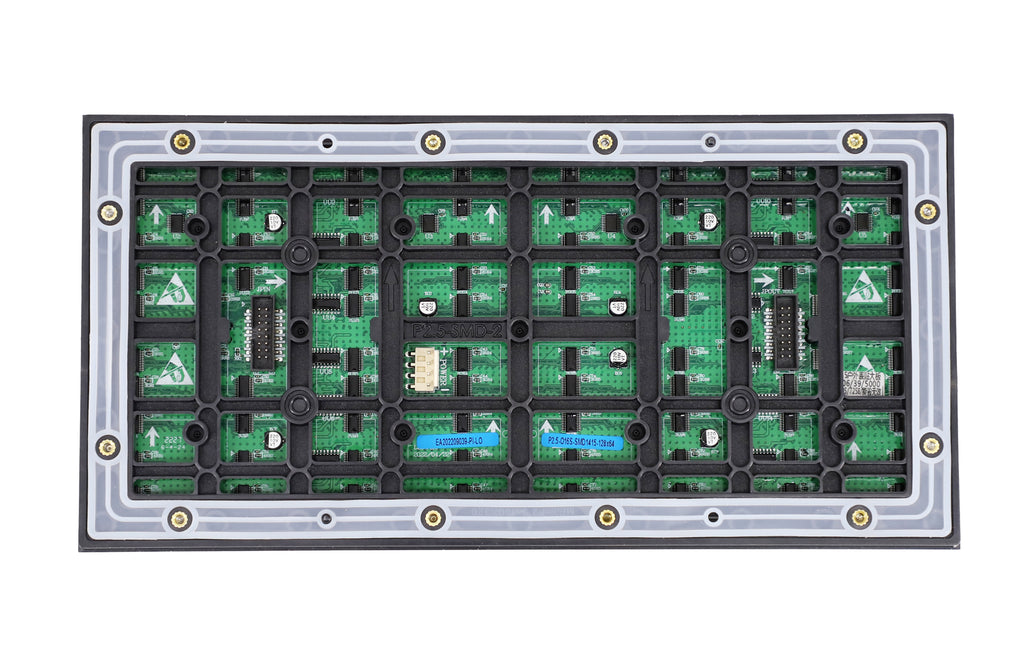

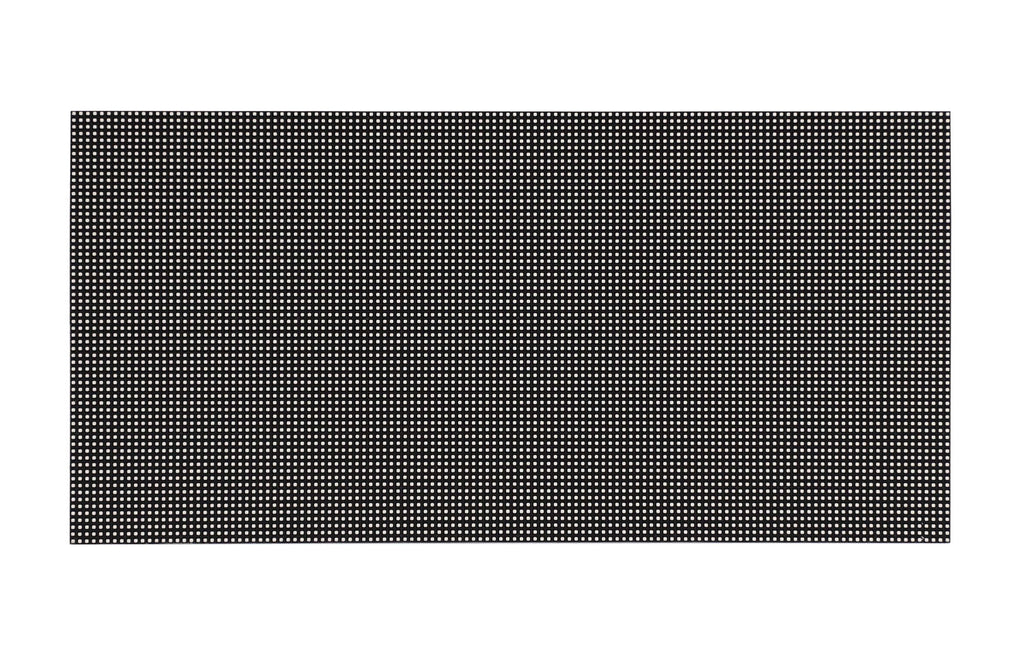

Most pictures of Outdoor HD P2.5 320x160mm LED Screen Module:
Πρόσθετες πληροφορίες
| Μάρκα | Hite LED με ιστότοπο https://www.hdledisplay.com |
|---|---|
| Κώδικας προϊόντος | P2.5-O16S-SMD1415-128×64 |
