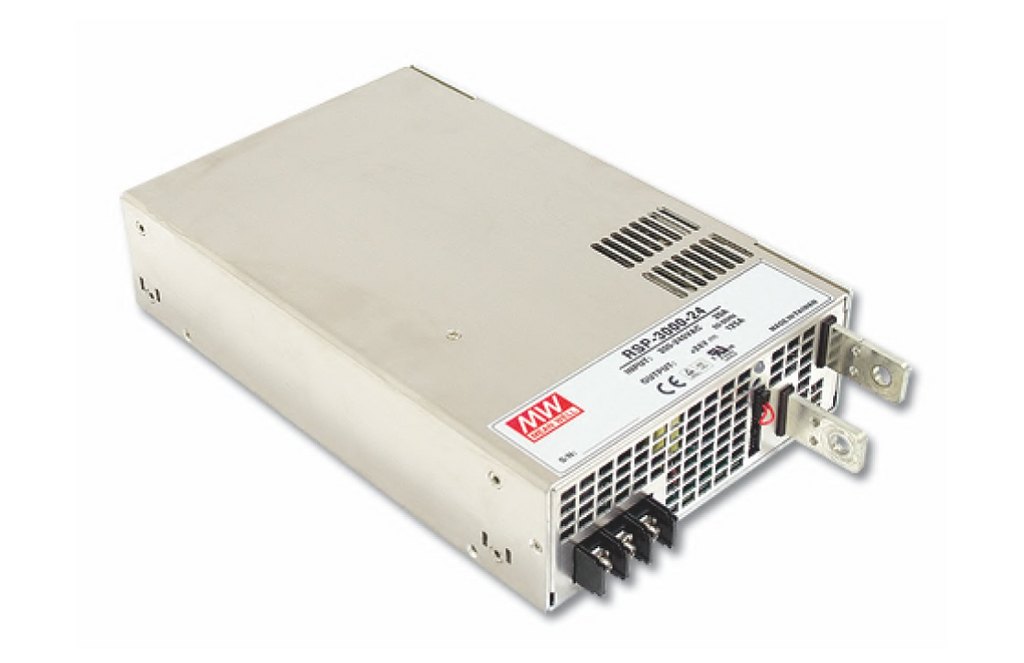

Meanwell RSP-3000-24 single output LED Lighting power supply
$420.00
RSP-3000 is a 3KW single output enclosed type AC/DC power supply. This series operates for 180~264VAC input voltage and offers the models with the DC output mostly demanded from the industry.
This led power supply is widely used in rental and fixed led displays and other led electronics.
To'g'ridan-to'g'ri zavod ta'minoti.
Good prices. stable quality.
- Tavsif
- Qo'shimcha ma'lumot
- Sharhlar (0)
- Endi so'rang
Tavsif
RSP-3000 is a 3KW single output enclosed type AC/DC power supply. This series operates for 180~264VAC input voltage and offers the models with the DC output mostly demanded from the industry.
Each model iscooled by the built-in fan with fan speed control, working for the temperature up to 70℃.Moreover, RSP-3000 provides vast design flexibility by equipping various built-in functions such as the output programming.active current sharing, remote ON-OFF control, auxiliary power, va hokazo.
Features of Meanwell RSP-3000-24 Single Output LED Lighting Power Supply
· AC input 180~264VAC
· Built-in active PFC function
· High efficiency up to 91.5%
· Forced air cooling by built-in DC fan
· Output voltage programmable
· Active current sharing up to 9000w(2+1)
· Built-in remote ON-OFF control / remote sense /auxiliary power / power OK signal
· Protections: Short circuit / Overload / Over voltage / Over temperature
· Optional conformal coating
· 5 years warranty
Applications
· Factory control or automation apparatus
· Test and measurement instrument
· Laser related machine
· Burn-in facility
· Digital broadcasting
· RF application
Parameters of Meanwell RSP-3000-24 Single Output LED Lighting Power Supply
|
Category
|
Power Supplies – External/Internal (Off-Board)
AC DC Converters
|
|
Series
|
RSP-3000 (3000Shilmoq)
|
|
Tur
|
Enclosed
|
|
Number of Outputs
|
1
|
|
Kuchlanishi – Kirish
|
180 ~ 264 VAC, 254 ~ 370 VDC
|
|
Kuchlanishi – Chiqindi 1
|
48Voyaga yettirmoq
|
|
Current – Chiqindi (Mix)
|
62.5A
|
|
Kuch (Watts)
|
3000Shilmoq
|
|
Kuchlanishi – Isolation
|
3 kV
|
|
Efficiency
|
91.5%
|
|
Operating Temperature
|
-20°C ~ 70°C (With Derating)
|
|
Xususiyatlari
|
Adjustable Output, PFC, Remote On/Off
|
|
Mounting Type
|
Chassis Mount
|
|
O'lcham / O'lchov
|
10.94″ L x 7.00″ W x 2.50″ R (278.0mm x 177.8mm x 63.5mm)
|
|
Minimum Load Required
|
Yo'q
|
Qo'shimcha ma'lumot
| Brend | Meanwell |
|---|---|
| Mahsulot kodi | Meanwell-RSP-3000-24 |
