Pintonan LED HD-R708 Tampa pikeun Tembok Video
$10.40
Led display HD-R708 receiving card, HUIDU HUIDU cocog pikeun Tampilan Indoor LED LED, Kadua Sink sareng Defync Walled Walls.
Kalayan manual pangguna, plugin sareng maén, Pasokan Produsén langsung, harga.
- Panjelasan
- Inpormasi Tambahan
- Ulasan (0)
- Naros ayeuna
Panjelasan
HuiDu HD-R708 led receive card feature：
1. Ngahijikeun 8 standard HUB75E interfaces
2. Ngadorong chip konvensional sareng chip pwm
3. Support static modules, any scan mode within 1/128 nyungkeun
4. Dokumi ngadukung Groads Gurun sareng Data Grup Grup
5. Intelligent setting, drawing and drawing, jend.
6. Rojongan Multipel-kartu, arbitrary sorting
7. Recommended load range: conventional chip load 128*512, PWM chip load 256*512
HuiDu HD-R708 led receive card Parameters Table：
| Cooperate with sending card | Support synchronous and asynchronous dual-mode play box, asynchronous sending card, synchronous sending card and two-in-one A video processor. | |
| Mod type | Support all conventional chip modules; support mainstream PWM chip modules | |
| Metode scanning | Ngarojong metode scanning ti statik ka 1/128 nyungkeun, and supports snapshot and empty point settings | |
| way of communication | Port Ethabernet | |
| Load range | Conventional chip: 128*512 (65,000 kaleuleuwihan), PWM chip: 256*512 (130,000 kaleuleuwihan) Super large load: P1.667, P1.538, P1.25 can be fully loaded with 8 ports |
|
| Sambungan kartu multi | Receiving cards can be sorted arbitrarily, nanosecond-level synchronization | |
| gray scale | Support 256~65536 levels | |
| smart settings | Smart settings can be completed in a few simple steps, and any routing can be matched through the screen routing settings Display unit board in line mode |
|
| test function | The receiving card integrates the screen test function to test the brightness uniformity of the display screen and the display screen Module flatness | |
| communication distance | Within 80 meters of Category 5e and Category 6 network cables | |
| intervarface | 2 5V power ports, 2 Ports Ethabet Gigit, 8 groups of HUB75E ports | |
| Voltase input | 4.0V-5.5V | |
| Kakuatan damel | 5W |

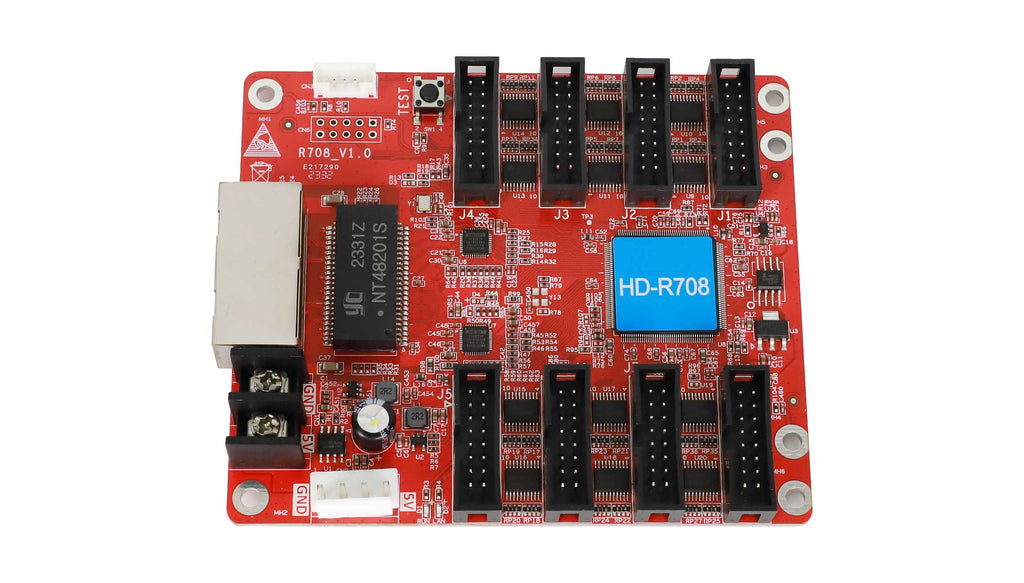

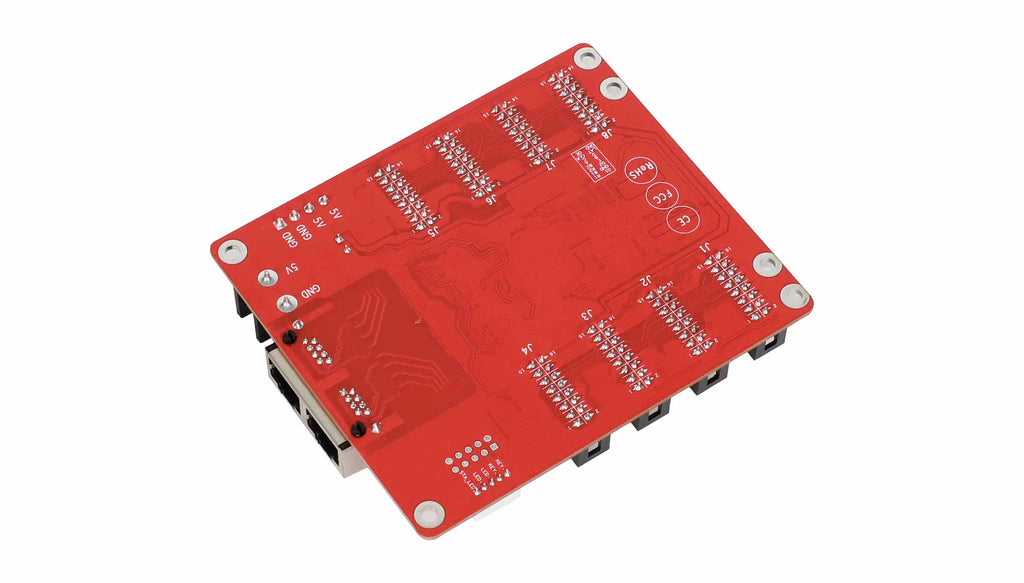

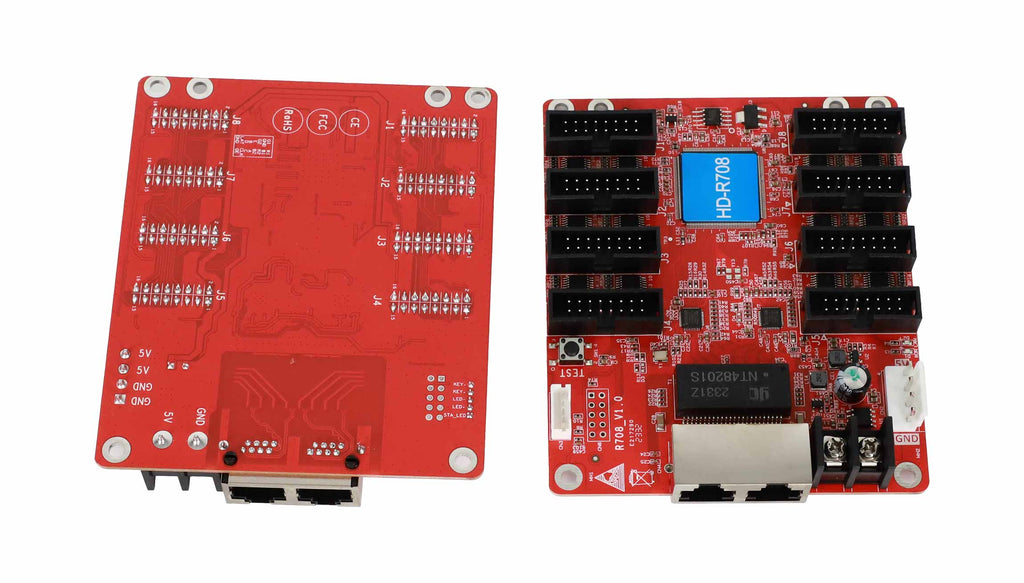

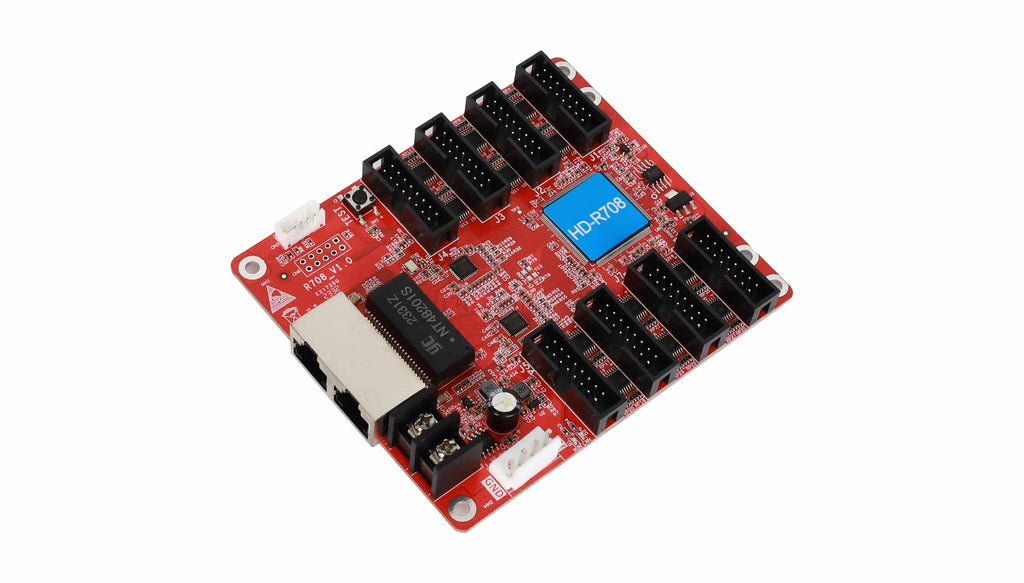

Most pictures of Led Display HD-R708 receiving card:
Inpormasi Tambahan
| Merek | HuiDu |
|---|---|
| Kode produk | HD-R708 |
