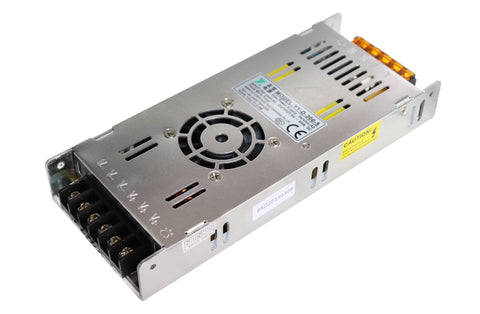

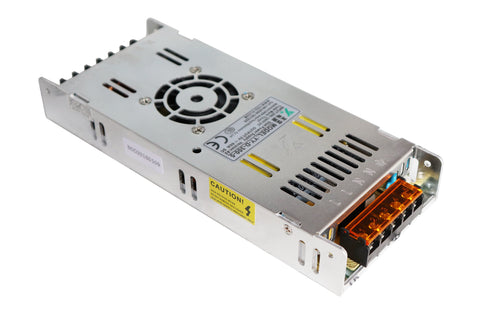

YOU-YI YY-D-300-5 5V60A 300W EMC LED screen power supply
$13.30
Buy YOU-YI YY-D-300-5 5V60A 300W EMC LED screen power supply from Led display manufacturer in China at low price, Për fazën tuaj të qirave dhe panelet e videos LED të montuara në mur.
- Përshkrim
- Informacion shtesë
- Rishikime (0)
- Pyes tani
Përshkrim
YOU-YI YY-D-300-5 5V60A 300W EMC LED Power Supply Features:
1. Toshiba high voltage MOS tube, with high pressure resistance, and good switching performance.
2. Provide over-voltage protection, over-current protection, over-temperature protection short circuit protection, overload protection. When the protection mechanism is triggered, the power is automatically turned off, and after the fault is removed, the power supply is resumed.
3. Fan can automatically adjust the speed according to the power supply temperature, when the temperature is low or do not turn vulgar, when the temperature is high when the high-speed rotation.
YOU-YI YY-D-300-5 5V60A 300W EMC LED Power Supply Parameter:
|
Model |
YY-D-300-5 |
|
|
Dalje |
Output Voltage |
5Shoqe |
|
Max Current |
60Një |
|
|
Current Range |
0～60A |
|
|
Max Power |
300W. |
|
|
Ripple and noise |
100mV |
|
|
Voltage adjustment range |
±1% |
|
|
Voltage tolerance |
±0.2% |
|
|
Linear adjustment rate |
±0.5% |
|
|
Load regulation |
±2.0% |
|
|
Start Time |
50mS |
|
|
Hold time |
20mS |
|
|
Hyrje |
voltage range |
200V～240V |
|
Frequency Range |
47Hz～63Hz |
|
|
Effectiveness |
86% |
|
|
Inrush current |
≤40A |
|
|
Leakage current |
≤2.0mA |
|
|
Protection |
Overload |
Over Max Power of 110% nga 150% |
|
Over temperature |
95℃±5℃ |
|
|
Cooling mode |
Fan forced cooling |
|
|
Enviroment |
Temperatura e funksionimit |
—30℃～+60℃ |
|
Lagështia |
20～90%RH,No condensation |
|
|
Temperatura e ruajtjes, lagështi |
—40℃～+80℃,10～95%RH |
|
|
Temperature Coefficient |
±0.03%/℃（0～50℃） |
|
|
Resistant to vibration |
10-300MHz,1Gocë,10Minute / period, |
|
|
X.Y.Z axis for 60 minutes each. |
||
|
Safity |
Safety Standard |
Accord to GB4943、UL60950、EN60950 |
|
EMC Standard |
Accord to GB9254、EN55022A |
|
|
Pressure resistance |
I/P-O/P:3KVAC/3mA/1min |
|
|
I/P-FG:1.5KVAC/3mA/1min |
||
|
O/P-FG:0.5KVAC/3mA/1min |
||
|
Isolation resistance |
I/P-O/P:50MΩmin/500VDC |
|
|
Certified |
CQC/ CE/ CB/ ROHS/CCC |
|
|
Other |
Dimensione |
212*85*30mm |
Informacion shtesë
| Markë | Hite LED me Uebfaqe https://www.hdledisplay.com |
|---|---|
| Kodin e produktit | YOU-YI-YY-D-300-5 |
