HuiDu HD-VP830 two-in-one full color LED screen video processor

HuiDu HD-VP830 Two-in-one Full Color LED Screen video processor features:

входить
1. Поддерживать 2 channels of HDMI, 1 channel of DVI, 1 channel of SDI, seamless switching of multiple video signals;
2. Поддерживать 1 TRS 3.5mm standard two-channel audio input and HDMI audio input.

выход
3. Оснащен 8 Gigabit Ethernet ports as standard, directly cascaded to the receiving card;
4. The maximum control is 5.2 миллион пикселей, the maximum horizontal support is 8192 пиксели, and the maximum vertical support is 4096 пиксели;
5.1 TRS 3.5mm standard two-channel audio output.

Функция
1. Стандартный Wi-Fi, support mobile phone APP wireless control;
2. Standard infrared wireless remote control function;
3. Support RS232 centralized control (connect to central control equipment);
4. Support instant saving technology, parameters are automatically saved;
5. Support brightness adjustment and key lock function;
6. Поддерживать 8 ПРЕДУПРЕТЫ И ЗОНЯ;
7. Support three-screen display, support picture-in-picture (Пип) and picture-outside-picture (POP) функции

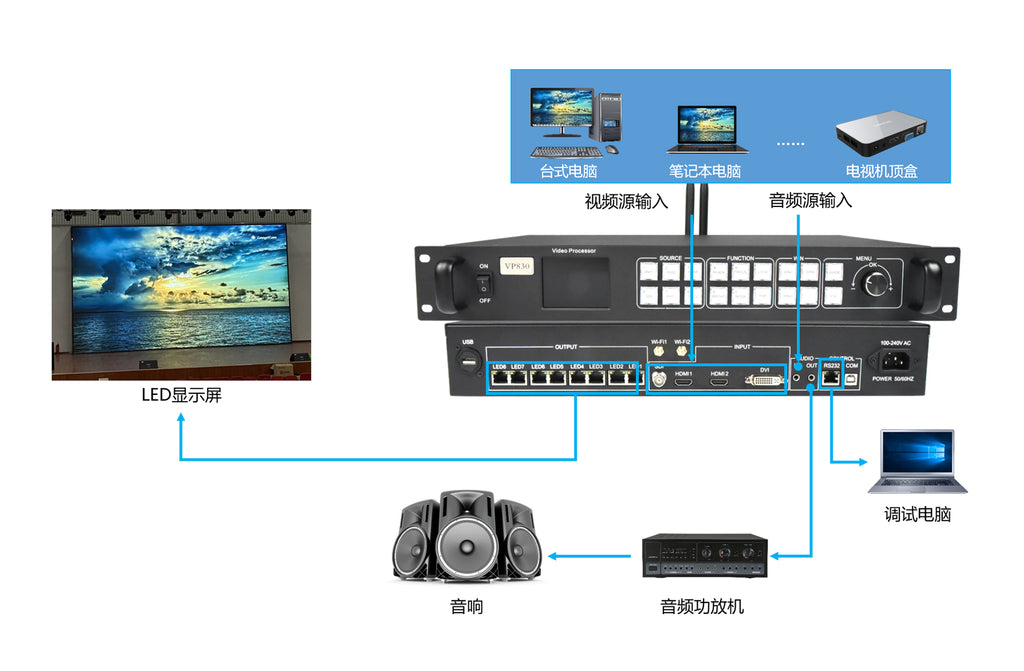

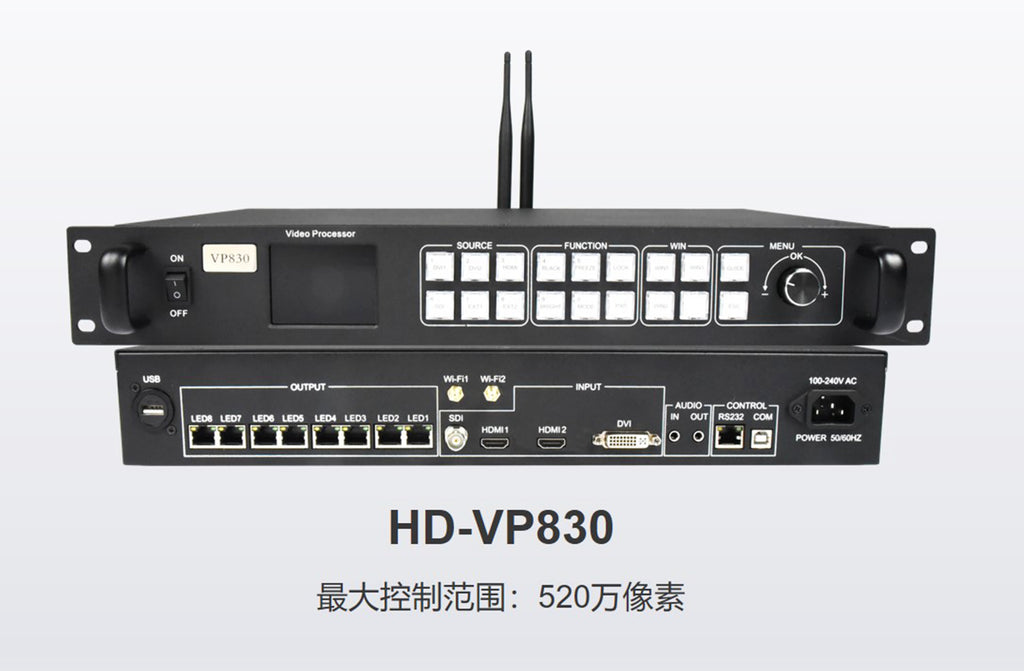

Most picttures of HuiDu HD-VP830 Two-in-one Full Color LED Screen video processor:
