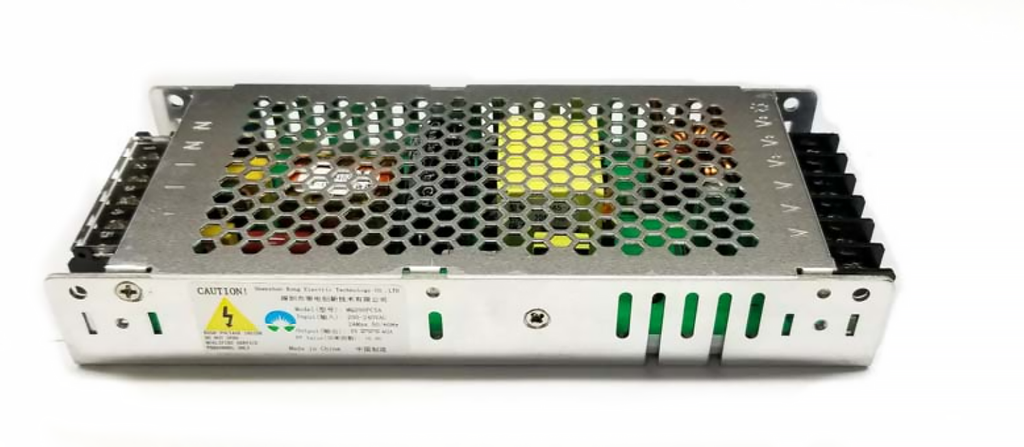

MQ200PC5A Rong-Electric Led display power supply
$14.00
The power supply was designed for LED display :кичинекей өлчөм, high efficiency,stability, and reliability. Power supply has input undervoltage, output current limiting,output short circuit protection. Power supply will apply with high rectification which greatly improves the power efficiency,can reach 85.5% above, saving energy consumption.
- Сүрөттөө
- Кошумча маалымат
- Сын-пикирлер (0)
- Сурап
Сүрөттөө
MQ200PC5A Rong-Electric Led display Power Supply Overview:
The power supply was designed for LED display :,кичинекей өлчөм, high efficiency,stability, and reliability. Power supply has input undervoltage, output current limiting,output short circuit protection. Power supply will apply with high rectification which greatly improves the power efficiency,can reach 85.5% above, saving energy consumption.
MQ200PC5A Rong-Electric Led display Power Supply Main Electrical Specification:
|
Чыгуу Күч （W） |
Киргизүү чыңалуу range （Vdc） |
Чыгуу чыңалуу （Vdc） |
Чыгуу Current（A） |
Regulation accuracy |
Ripple & Noise（mVp-p） |
|
|
300
|
160—264
|
+5.0
|
0-60
|
±2%
|
≤200 |
MQ200PC5A Rong-Electric Led display Power Supply Environmental conditions:
| Жок. | ITEM | Мүнөздөмөлөр | Units | Сын-пикирлер | |
| 1 | Permanen-toperating temperature | -30-70 | ℃ | Small size power supply, bottom Need to add 200*200*3mm Heat sink auxiliary heat dissipation | |
| 2 | Сактоо температурасы | -40-80 | ℃ | ||
| 3 | Work Relative Humidity | 10-90 | % | ||
| 4 | Storage Relative Humidity | 10—90 | % | ||
| 5 | Cooling mode | Ventilation cooling | |||
| 6 | Atmospheric pressure | 80—106 | Kpa | ||
| 7 | Altitude | Altitude 0-3000 | М | ||
| 8 | Vibration | 10-55Hz 19.6m/S²(2G),20 minutes each along X,Y and Z axis. |
Most pictures of MQ200PC5A Rong-Electric Led display Power Supply:
Кошумча маалымат
| Бренд | Rong-Electric |
|---|---|
| Продукция коду | Rong-Electric MQ200PC5A |
