VDWALL LVP7000 multi-window LED video wall processor
$1,495.00
VDWALL LVP7000 multi-window LED video wall processor, Highly integrated video processor with varieties of advanced image.processing technologies:Chanjman san pwoblèm, Sync-output cropped images, Multi-window display by image overlay etc.
- Deskripsyon
- Lòt enfòmasyon
- Revizyon (0)
- Mande kounye a
Deskripsyon
Features of VDWALL LVP7000 Multi-window LED video wall processor:
1.Highly integrated video processor with varieties of advanced image.processing technologies:Chanjman san pwoblèm, Sync-output cropped images, Multi-window display by image overlay etc.
2.Supports SD and HD, Analog and Digital Video Inputs:
4×CVBS 4×VGA
4xDVI（HDMI） 4×SDI（SD-SDI / HD-SDI / 3G-SDI）
3.Per pixel Motion Adaptive De-interlacing processing by Faroudja DCDi
4.8 DVI Outputs, Each one has the resolution up to 1920 x 1200_60Hz
5.Output width up to 20480 pixels or output height up to 9600 lines by one LVP7000
6.Device Aided calculation of the cropped image’s size and position
7.Fully CrossPoint high bandwidth video switching
8.Ture seamless switching and Fade-in/Fade-out switching to any one of input signals
9.Backup or Restore the device settings and adjustment data by a PC
10.24/7 Application, stable and reliable
Rental Performance,special-shaped or ultra-large LED display,mixed displays(with different poxel pitch),Stage Entertainment & Theater,High-end Meetings& Exhibitions etc.
VDWALL LVP7000 Multi-window LED video wall processor Specification:
|
Input signal index |
||
|
Type/Quantity |
4×CVBS |
|
|
Video standard |
PAL/NTSC |
|
|
Composite Video Scope/Impedance |
1V（p_p）/ 75Ω |
|
|
VGA format |
PC（VESA） |
≤1920×1200_60Hz |
|
VGA Scope/Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|
|
DVI format |
PC（VESA） |
≤1920×1200_60Hz |
|
HDMI-1.3（CEA-861） |
≤1920×1080_60Hz |
|
|
SDI format |
SMPTE 259M SMPTE 292M |
480i_60Hz 576i_50Hz 720p、 1080mwen、 1080p |
|
Input port |
CVBS：VGA socket P4 |
|
|
Output signal index |
||
|
Type/Quantity |
8×DVI |
|
|
Preview output |
1×DVI(one channel of Out_K or Out_L is optional as preview output) |
|
|
DVI resolution |
1024×768_60Hz 1280×1024_60Hz 1920×1080p_60Hz 1920×1200_60Hz |
|
|
Output port |
DVI：24+1 DVI_D |
|
|
Lòt lòt |
||
|
Kontwòl pò |
RS232/USB/LAN |
|
|
Antre vòltaj |
100-240VAC 50/60Hz |
|
|
Konsomasyon maksimòm pouvwa |
≤80W |
|
|
Operating Temp |
0-45 ℃ |
|
|
Imidite |
15-85% |
|
|
Dimensions（Product） |
482.6(longè) x 300(lajè) x 89(wotè)mm |
|
|
Dimensions（Package） |
540(longè) x 400(lajè) x 180(wotè)mm |
|
|
Weight（N.W.） |
6Kg |
|
|
Weight（G.W.） |
9Kg |
|

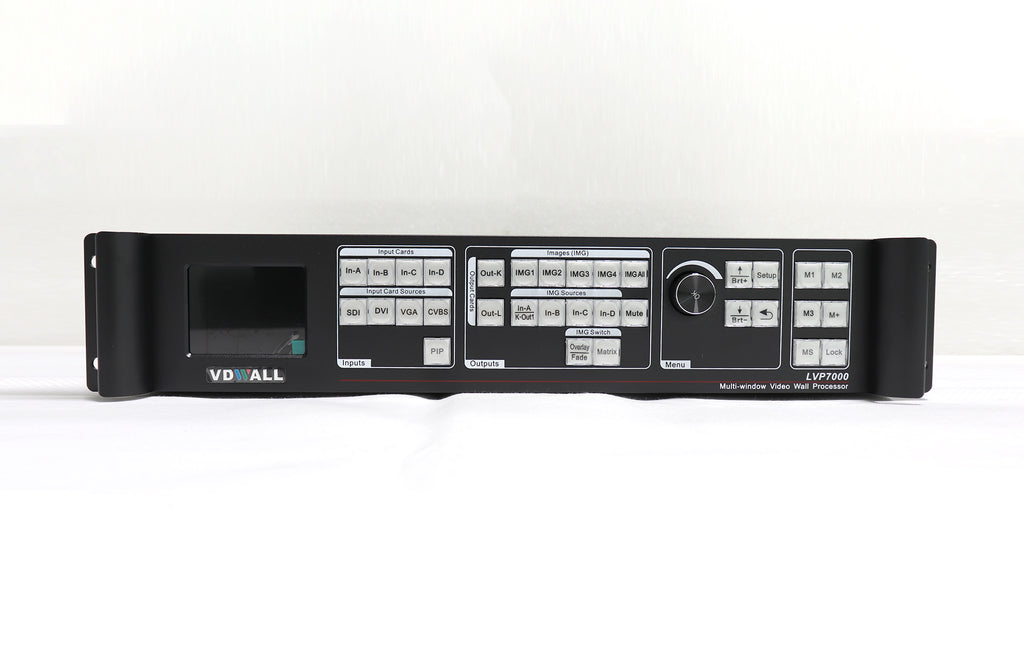

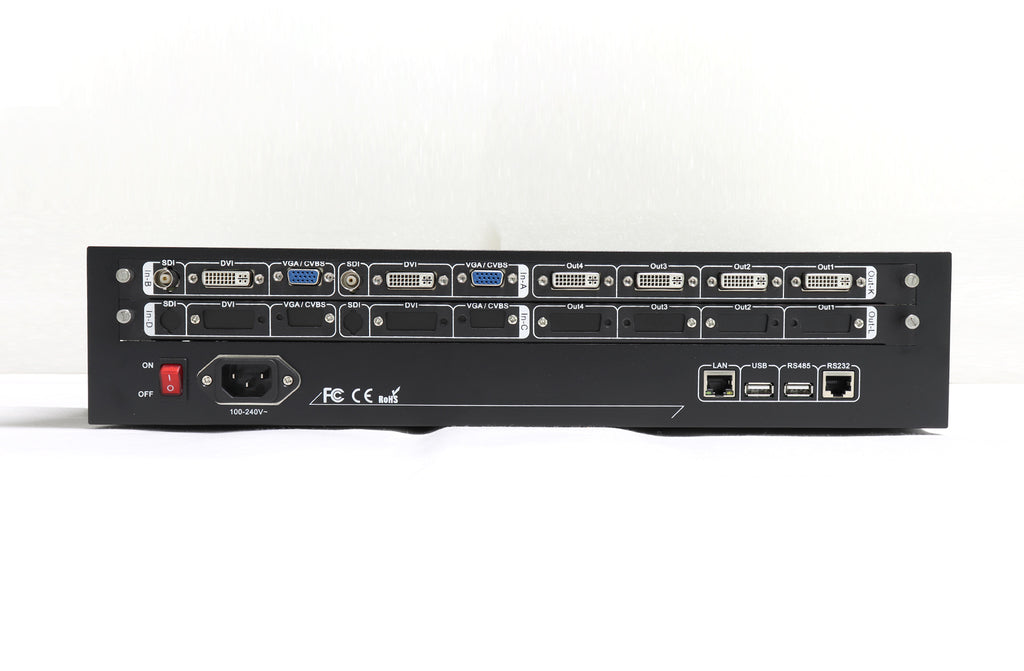

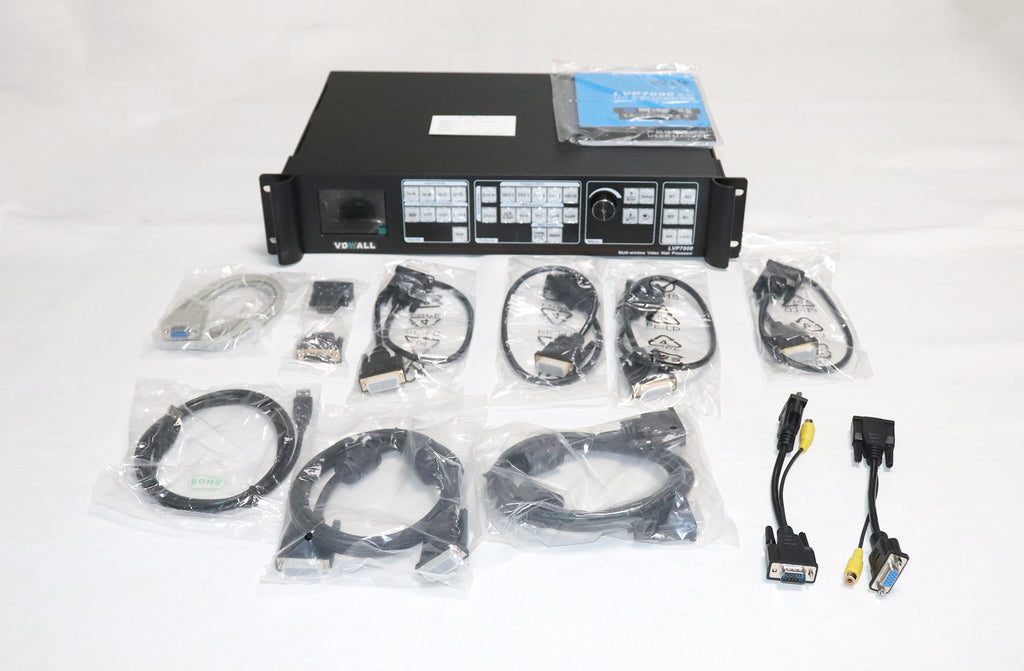

More Pictures of VDWALL LVP7000 Multi-window LED video wall processor:
Lòt enfòmasyon
| Make | Vdwall |
|---|---|
| Kòd pwodwi | VDWALL-LVP7000 |
