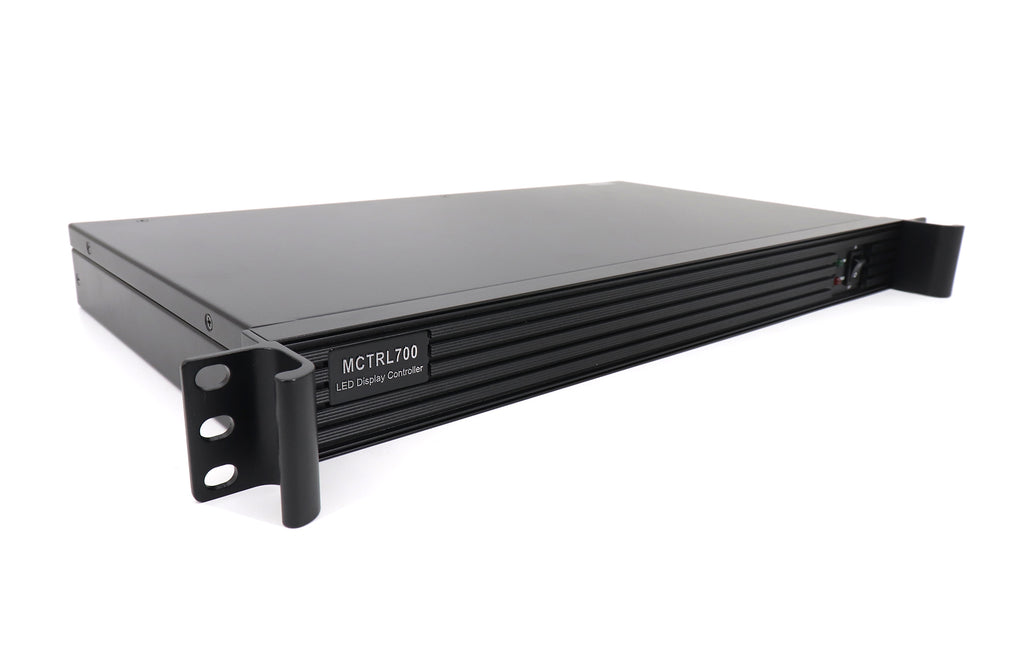

Novastar MCTRL700 LED screen video LED control box
$240.00
Novastar MCTRL700 LED screen video LED control box, Contrôleur Novastar yo anfòm pou ekspozisyon andedan kay la epi deyò ki ap dirije, Tou de lokasyon etap ak enstalasyon fiks yo.

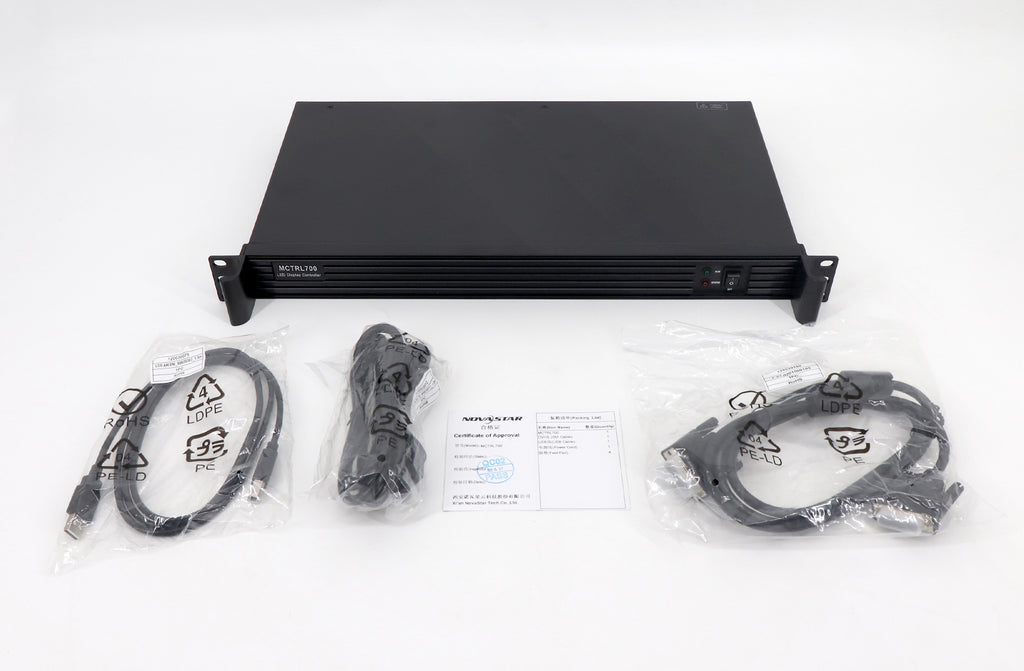

ak manyèl itilizatè, Dosye rcfg, Pwovizyon pou manifakti dirèk, Gran pri.
- Deskripsyon
- Lòt enfòmasyon
- Revizyon (0)
- Mande kounye a
Deskripsyon

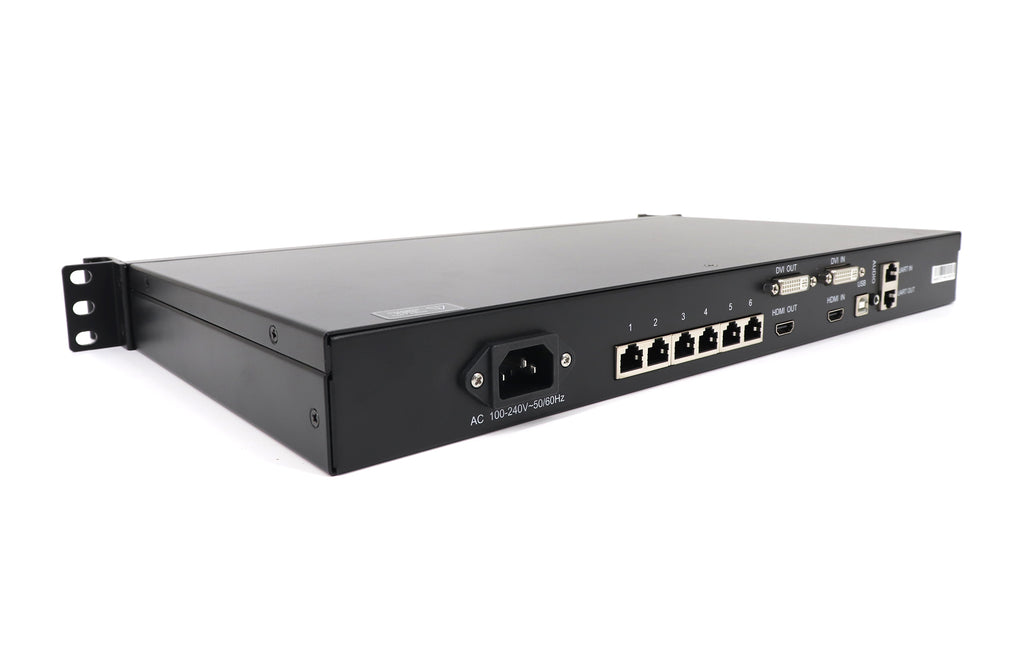

Novastar MCTRL700 LED Screen Video LED Control Box. The specific features are as follows:
1) Soutni 1 channel of DVI video source input.
2) Soutni 1 HDMI video source input.
3) Soutni 1 channel of audio input.
4) Support 6-channel Gigabit Ethernet port output, each network port supports up to 650,000 piksèl.
5) Soutni 1 channel DVI video source output for cascading or monitoring.
6) Soutni 1 HDMI video source output for cascading or monitoring.
7) Soutni 1 way port USB control interface.
8) Supports RS232 IN and RS232 OUT control interfaces for device cascading.
9) Soutni 2 channels of 100M network port, with square port USB interface, device cascading.
10) Maximum load resolution 2048×1152@60Hz or 1920×1200@60Hz.
Novastar MCTRL700 LED Screen Video LED Control Box Parameter:
| Input indicator | ||
| Pò | Kantite | Resolution specification |
| DVI IN | 1 | VESA |
| Dmi | 1 | EIA/CEA-861 standard, compliant with HDMI-1.3 standard, HDCP support |
| Machine specification | ||
| power consumption | 16W | |
| Tanperati opere | -20℃~60℃ | |
| K ap travay imidite | 0%RH~95%RH | |
| Pwa nèt | 2.9 Kg | |
| USB Line | 1.5 M | |
| DVI Line | 1.5 M | |
Lòt enfòmasyon
| Make | Novastar |
|---|---|
| Kòd pwodwi | Novastar-MCTRL700 |
