P4 modul vanjskog HD LED zaslona 256x128 mm
$13.90
Small pixel pitch 4mm for outdoor SMD LED screen, good solution for outdoor Rental LED Screen and outdoor fixed installation LED display.
4mm is one of the pixel pitches of usual outdoor LED screens. Therefore, it is a very good solution for Rental LED Screen for both outdoor and indoor use.
- Opis
- Dodatne informacije
- Recenzije (0)
- Raspitajte se sada
Opis
P4 Outdoor HD LED Display Screen Module 256x128mm
P4 Outdoor HD LED Display Screen Module Features:
1) Small pixel pitch 4mm for outdoor SMD LED screen, good solution for outdoor Rental LED Screen and outdoor fixed installation LED display.
2) 4mm is one of the pixel pitches of usual outdoor LED screens. Therefore, it is a very good solution for Rental LED Screen for both outdoor and indoor use.
3) Kinglight LED, velika svjetlina, good brightness&color conformity, high reliability.
4) Reasonable PCB design with good heat radiation and achieve long life span.
P4 Outdoor HD LED Display Screen Module Parametri:
|
LED Specifikacija lampe |
||||||
|
Boja |
Paket |
Intenzitet |
Viewing angle |
Valna duljina |
Testing condition |
|
|
Crveni |
SMD1921 |
450-600mcd |
120°/120° |
620-625NM |
25℃,20mA |
|
|
Zelena |
SMD1921 |
1000-1400mcd |
120°/120° |
516-530NM |
25℃,20mA |
|
|
Plava |
SMD1921 |
200-400mcd |
120°/120° |
465-475NM |
25℃,20mA |
|
|
Parametar modula |
||||||
|
Visina piksela |
4mm |
|||||
|
Pixel configuration |
SMD1921 |
|||||
|
Gustoća |
62,500 piksela/㎡(Pravi piksel) |
|||||
|
Razlučivost modula |
64piksel(L) * 32piksel(H) |
|||||
|
Dimenzija modula |
256mm(L) * 128mm(H) * 18mm(D) |
|||||
|
Način vožnje |
Konstantna struja, 1/8 dužnost |
|||||
|
Maska modula |
Čista crna maska—ekran visokog kontrasta |
|||||
|
Parametar električne energije |
||||||
|
Optičke ocjene |
||||||
|
Svjetlina |
≥6,000 cd/㎡ |
|||||
|
Kut gledanja |
120°(Horizontalno); 120°(Okomito) |
|||||
|
Najbolja udaljenost gledanja |
≥4m |
|||||
|
Gray Grade |
16,384 levels for each color |
|||||
|
Boja zaslona |
4.39 Trillion Colors |
|||||
|
Podešavanje svjetline |
100 ocjene softverom ili automatski senzorom |
|||||
|
Maks. Potrošnja energije |
30W |
|||||
|
Kontrolni sustav |
||||||
|
Correction Scale Level |
12bits |
|||||
|
Frekvencija okvira |
≥60Hz |
|||||
|
Screen Refresh Frequency |
≥1,920Hz |
|||||
|
Gamma Correction |
-5.0～5.0 |
|||||
|
Ulazni signal |
Kompozitni video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Kontrolna udaljenost |
100m(Ethernet kabel); 20KM(optički kabel) |
|||||
|
Podržava VGA način |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Temperatura boje |
5000—9300 podesivo |
|||||
|
Korekcija svjetline |
Piksel po piksel, modul po modul, ormarić po ormarić |
|||||
|
Pouzdanost |
||||||
|
Radna temperatura |
-20～+60 ºC |
|||||
|
Stored Temperature |
-30～+70 ºC |
|||||
|
Radna vlažnost |
10%～90% RH |
|||||
|
Životni vijek |
100,000 sati |
|||||
|
MTBF |
5000 sati |
|||||
|
Continuous Working Time |
≥72 sata |
|||||
|
Stupanj zaštite |
IP65 |
|||||
|
Out of Control Pixel Rate |
≤0,01% |
|||||

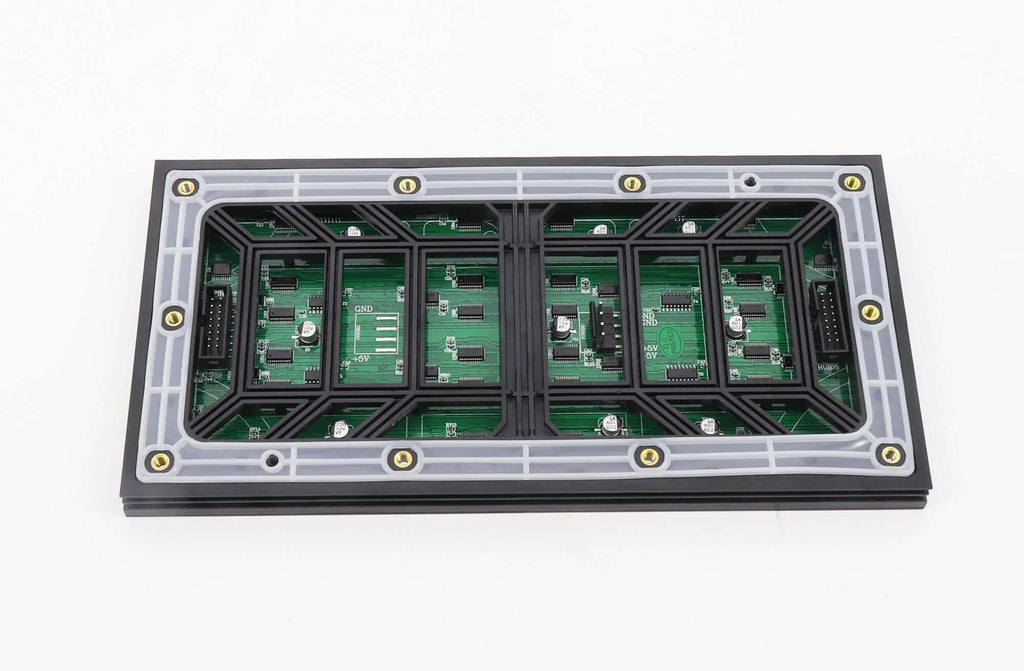

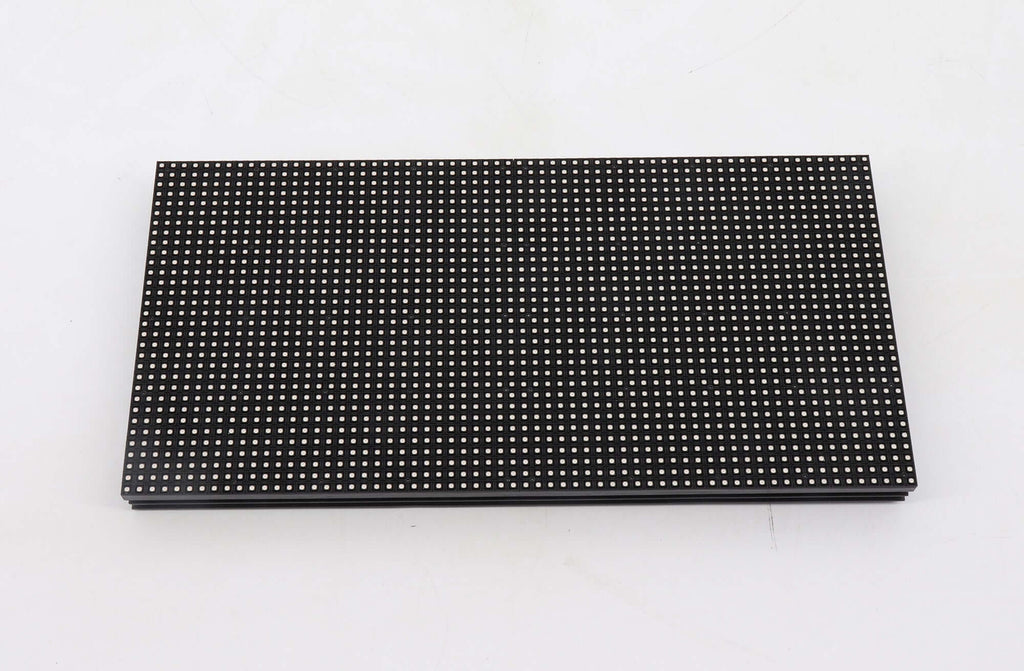

Most pictures of P4 Outdoor HD LED Display Screen Module 256x128mm:
Dodatne informacije
| Marka | Hite je vodio s web stranicom https://www.hdledisplay.com |
|---|---|
| Kodeks proizvoda | P4-O8S-SMD1921-64×32 |
