Indoor P2 320x160mm HD small pitch LED video screen module
$25.60
Indoor P2 320x160mm HD small pitch LED video screen module, indoor led modules, fit for indoor wall mounted led video walls and stage rental led displays.
3840 ઉચ્ચ તાજું દર, can use Novastar, ક lંગું, Colorlight controller systems.
Direct factory supply, good prices.
- વર્ણન
- અધિક માહિતી
- સમીક્ષાઓ (0)
- હવે પૂછપરછ કરો
વર્ણન
Indoor P2 320x160mm HD Small Pitch LED Video Screen Module Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| લાલ | SMD1515 | 45-65mcd | 120°/120° | 620-625nm | 25.,10mA | |
| લીલોતરી | 120-200mcd | 120°/120° | 516-530nm | 25.,5mA | ||
| Blue | 20-40mcd | 120°/120° | 465-475nm | 25.,5mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 2મીમી | |||||
| Pixel Configuration | SMD1515 | |||||
| Density | 250,000 pixels/㎡ | |||||
| Module Resolution | 160પિક્સેલ(L) * 80પિક્સેલ(H) | |||||
| Module Dimension | 320મીમી(L) * 160મીમી(H) * 18મીમી(કદરૂપું) | |||||
| Driving Mode | Constant current, 1/40 duty | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥800 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | |||||
| Best Viewing Distance | ≥2m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. વીજળી -વપરાશ | 21 ડબ્લ્યુઇ | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1920Hz | |||||
| Input Signal | Composite Video, S-video, અહંકાર, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable); | |||||
| 20KM(optical fiber cable) | ||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| કામકાજનું તાપમાન | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||

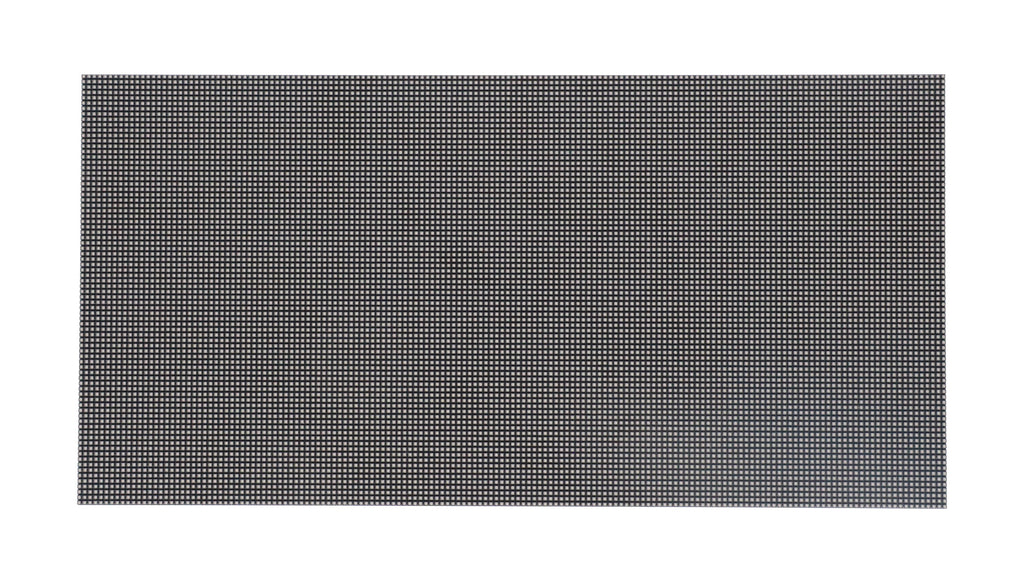

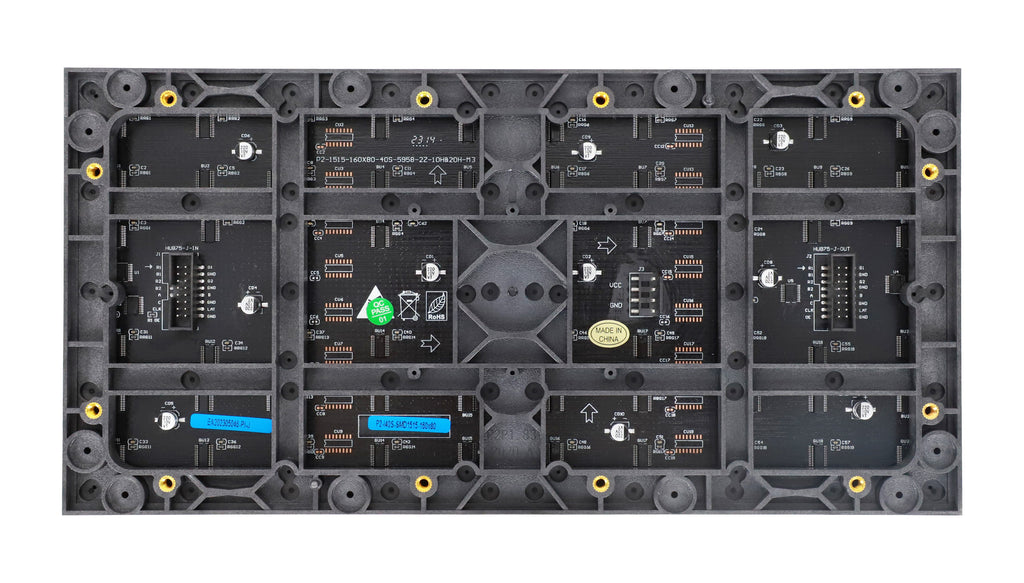

Msot pictures of Indoor P2 320x160mm HD Small Pitch LED Video Screen Module:
અધિક માહિતી
| છાપ | વેબસાઇટ સાથે હિટે લીડ https://www.hdledisplay.com |
|---|---|
| ઉત્પાદન -સંહિતા | P2-I40S-SMD1515-160×80 |
