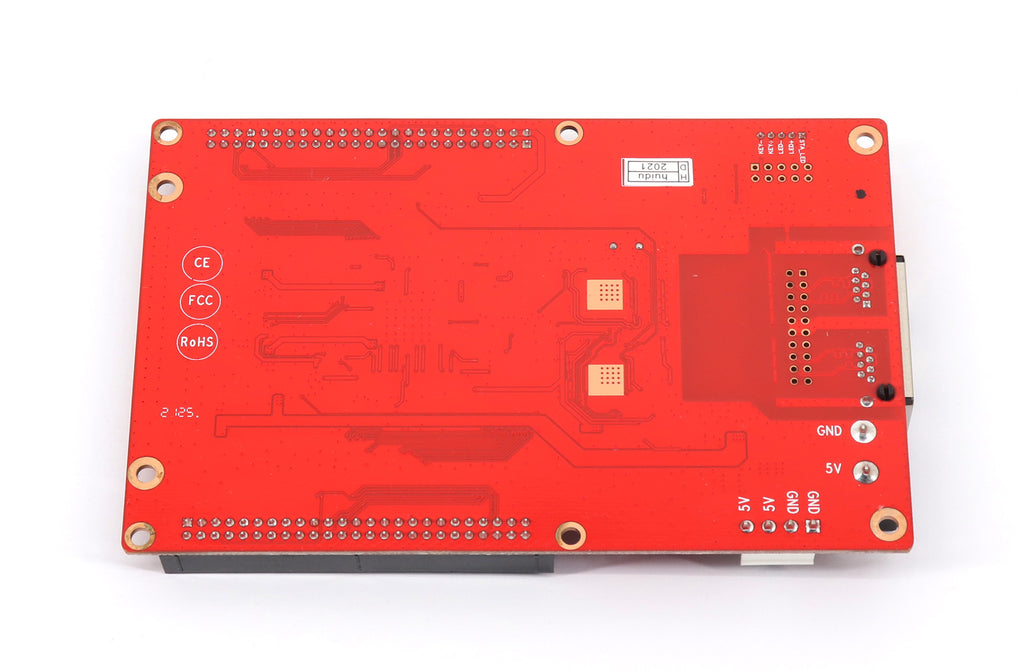

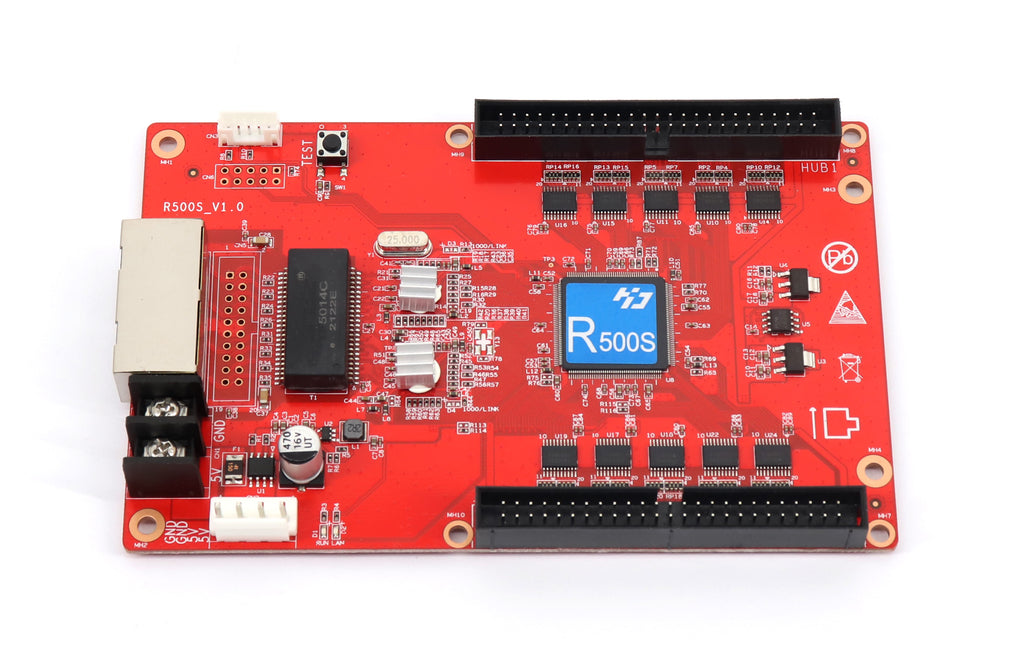

Huidu HD-R500s asynchronous full color cascading receiver card

Module Type

Be compatible with indoor/

outdoor single/dual/full

color module;virtual module

is supported;PWM chips

such as MBI5041/5042,

MBI5050, MY9221, MY9268

are supported;

સ્કેન મોડ

All scan modes from static to

1/32 are supported.

Area of single receiver card

256*128（recommended）

Quantity of single network

line cascading receiver card

64pcs

Connection of multiple cards

Receiver card can rank

randomly, setting the

connection location by

software’s automatic

identification or by hand.

ભૂખરા રંગનું સ્તર

0-65536

Smart Setting

Smart setting is completed by

few simple steps, screen unit

plates in any alignment

can be matched by screen

alignment setting.

Play Content

કોઇ, animation, ચિત્ર, લખાણ,

શબ્દ, table, Pણપત્ર, clock and

time are supported to play.

Test Function

The receiving card integrates

તે screen testing function,

users can carry out color band

(including red, લીલો, blue and

white), રાખોડી, slant, grid and

multi points tests by pressing

the self-detection button.

Time Switch

Support customized/computer

time swith

બંદર

Two 5V power ports，two

Ggabit Ethernet ports and

a group of standard

switch ports

ઇનપુટ વોલ્ટેજ

4વી -6 વી

Work Temperature
