Colorlight X6 professional LED large screen controller
$425.00
Colorlight X6 Professional LED Large Screen Controller is a professional control system and video processing equipment specially designed for LED engineering applications. It equips various video signal interfaces, supports high-definition digital ports (SDI, Hdmi, Dvi), and seamless switching between signals can be achieved. It supports broadcast quality scaling and multi-pictures display.
- Kirjeldus
- Lisateave
- Ülevaated (0)
- Küsige kohe
Kirjeldus
Colorlight X6 Professional LED Large Screen Controller Overview:
Colorlight X6 Professional LED Large Screen Controller is a professional control system and video processing equipment specially designed for LED engineering applications. It equips various video signal interfaces, supports high-definition digital ports (SDI, Hdmi, Dvi), and seamless switching between signals can be achieved. It supports broadcast quality scaling and multi-pictures display.
Colorlight X6 Professional LED Large Screen Controller Features:
•Supports various digital signal ports, including 1×SDI, 1×HDMI, 2×DVI
•Supports input resolution up to 1920×1200@60Hz
•Loading capacity: 3.9 miljon pikslit, Maksimaalne laius: 8192 pikslid, Maximum height: 4096 pikslid
•Supports arbitrary switching of video sources
•Supports three-picture display, the location and size can be adjusted freely
•Supports HDCP1.4
•Dual USB2.0 for high speed configuration and easy cascading among controllers
•Supports adjustment of brightness, chromaticity, contrast ratio, tone, and saturation
•Supports improved gray-scale performance at low brightness
•Compatible with all receiving cards, multifunction cards, and optical fiber converters of Colorlight
Colorlight X6 Professional LED Large Screen Controller Parameter:
| Sisendliides | |
| Dvi |
2 DVI sisendid VESA standard (supports 1920×1200@60H), supports HDCP |
| Hdmi |
HDMI sisend KMH/CEA-861 standard, supports 1920×1200@60Hz supports HDCPP |
| SDI |
SDI sisend,compatible with 3G-SDI, HD-SDI, SD-SDI |
| Heli |
Helisisestus, use with multi-function card (valikuline)
|
| Väljundliides | |
| Port1-8 | RJ45, 8 Gigabaidise Etherneti pordid |
| Liidese juhtimine | |
| USB_IN | USB -sisend, which connects with PC to configure parameters |
| USB_OUT | USB -väljund, cascading with the next controller |
| RS232 | RJ11 interface, connected with central control |
| Spetsifikatsioonid | |
| Suurus | 1U standardkast (482.6mm×44mm×237.5mm) |
| Sisendpinge | AC 100 ~ 240 V |
| Hinnatud energiatarve | 20W |
| Töötemperatuur | -20~ 60 ℃ |

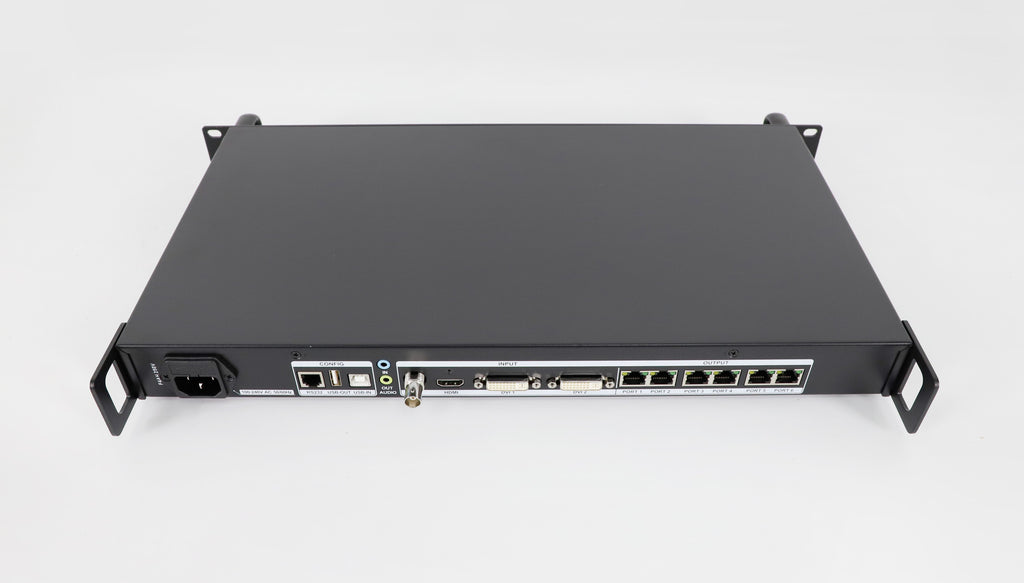

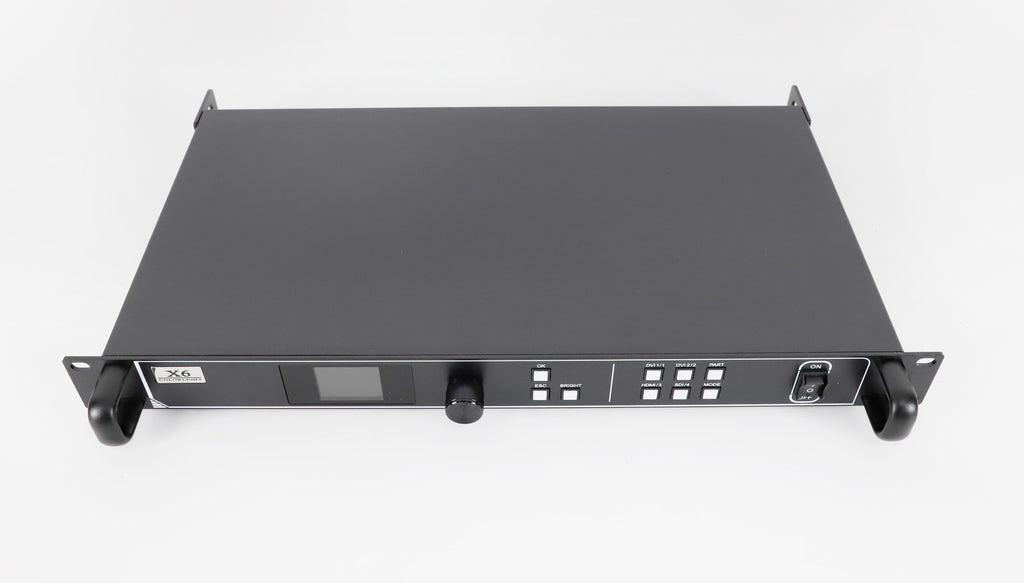

Colorlight X6 Professional LED Large Screen Controller pictures：
Lisateave
| Kaubamärk | Värvivalgus |
|---|---|
| Tootekood | Colorlight-X6 |
Ülevaated
Veel pole arvustusi.
