P4 256x128mm SMD2020 LED display module
$8.50
P4 256x128mm SMD2020 LED display module, indoor led modules, fit for indoor wall mounted led video walls and stage rental led displays.
3840 υψηλός ρυθμός ανανέωσης, can use Novastar, Λοξοτομώ, Colorlight controller systems.
Direct factory supply, good prices.
- Περιγραφή
- Πρόσθετες πληροφορίες
- Ανασκοπήσεις (0)
- Ρωτήστε τώρα
Περιγραφή
Notice before order
1) Parts included: Μονάδα LED, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. Εμείς don’t offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff: our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Instock Indoor P4 1/16Scan 64x32dot 256X128mm LED Display Module Parameter:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Κόκκινος |
SMD2020 |
70-100mcd |
120°/120° |
620-625nm |
25℃,20α |
|
|
Πράσινος |
SMD2020 |
120-200mcd |
120°/120° |
515-530nm |
25℃,10α |
|
|
Blue |
SMD2020 |
30-40mcd |
120°/120° |
465-475nm |
25℃,5α |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
4mm |
|||||
|
Pixel Configuration |
SMD2020 |
|||||
|
Density |
62,500 pixels/㎡ |
|||||
|
Module Resolution |
64εικονοκύτταρο(L) * 32εικονοκύτταρο(H) |
|||||
|
Module Dimension |
256mm(L) * 128mm(H) * 18mm(ρε) |
|||||
|
Driving Mode |
Constant current, 1/16 duty |
|||||
|
Module Mask |
Pure black mask—high contrast screen |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Λάμψη |
≥1,000 cd/㎡ |
|||||
|
Viewing Angle |
120°(Horizontal)； 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥4m |
|||||
|
Gray Grade |
14 κομμάτια |
|||||
|
Display Color |
4.4 trillion colors |
|||||
|
Ρύθμιση φωτεινότητας |
100 grades by software or automatically by sensor |
|||||
|
Max. Power Consumption |
19 W |
|||||
|
Control System |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1,920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, Δίσκο, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Θερμοκρασία εργασίας |
-20～+60 ºC |
|||||
|
Storage Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 ώρες |
|||||
|
MTBF |
5000 ώρες |
|||||
|
Continuous Operating Time |
≥72 hours |
|||||
|
Protection Grade |
IP31 |
|||||
|
Out-of-Control Pixel Rate |
≤0.01% |
|||||

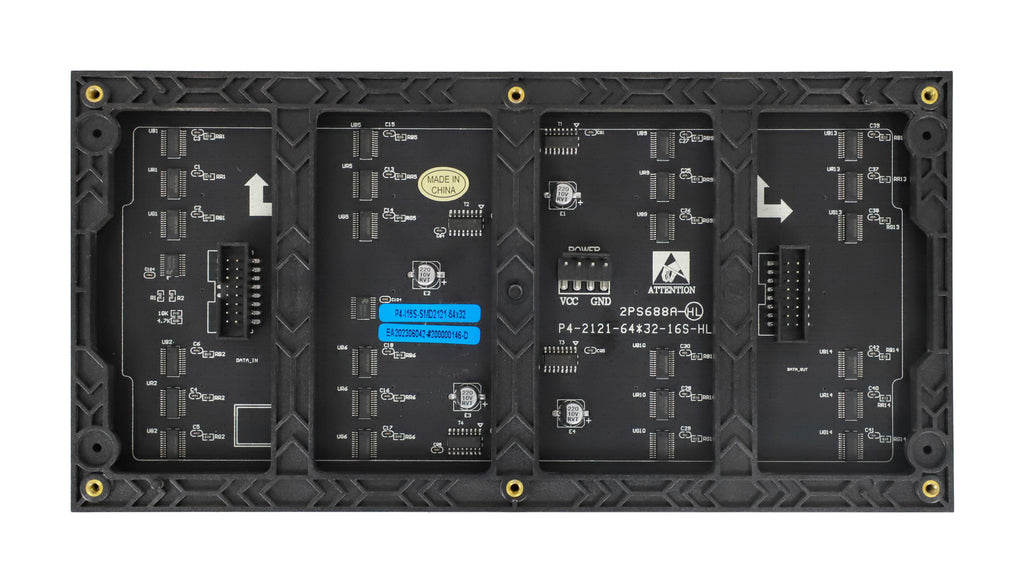

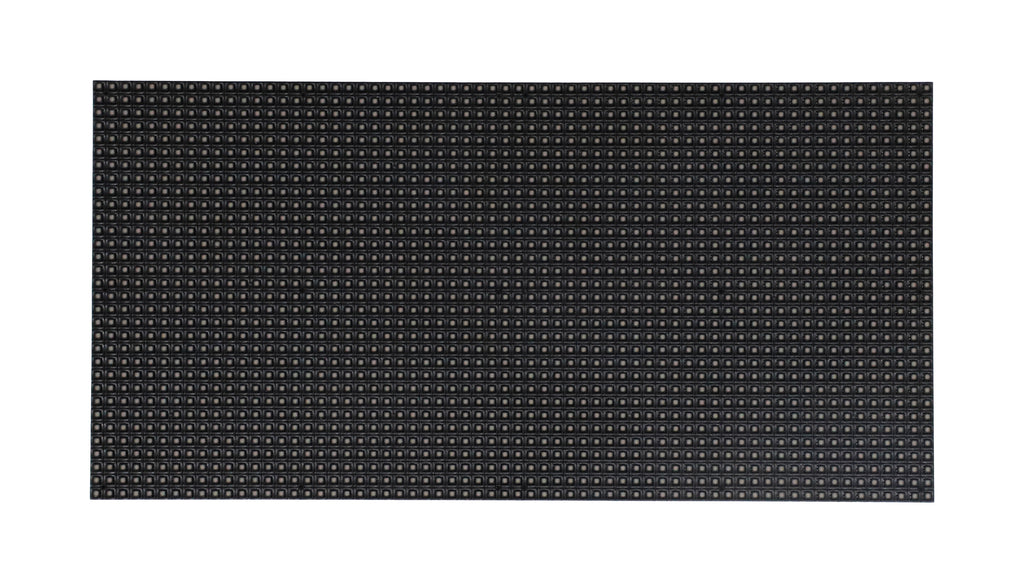

Most pictures of P4 256x128mm SMD2121 LED Display Module：
Πρόσθετες πληροφορίες
| Μάρκα | Hite LED με ιστότοπο https://www.hdledisplay.com |
|---|---|
| Κώδικας προϊόντος | P4-I16S-SMD2020-64×32 |
