P16 outdoor DIP LED screen module 256X256mm static driving
$24.70
P16 outdoor DIP LED screen module 256X256mm static driving. outdoor led modules, fit for exterior wall mounted led video walls and stage concert led displays.
3840 υψηλός ρυθμός ανανέωσης, IP65 waterproof, υψηλή φωτεινότητα, can use Novastar, Λοξοτομώ, Colorlight controller systems.
Direct manufacturer supply, good prices.
- Περιγραφή
- Πρόσθετες πληροφορίες
- Ανασκοπήσεις (0)
- Ρωτήστε τώρα
Περιγραφή
P16 Outdoor DIP LED Screen Module Features:
1) New developed mould for the plastic covers, hence, smaller module gaps and better screen flatness. What is more, the plastic covers are anti-ultraviolet, so the plastic covers are durable.
2) Reasonable PCB design makes the module reliable and steady.
3) LED chip is sorted within 2.5nm wave length and 10% color difference. Narrow wave length range and small color difference make perfect color uniformity and brightness conformity.
4) Exact control technology of brightness ratio of red, green and blue basic colors makes perfect white balance performance.
5) Famous constant current IC, ensuring the consistency and stability of the whole screen.
P16 Outdoor DIP LED Screen Module Parameters:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Κόκκινος |
DIP346 |
800-1500mcd |
110°(H); 50°(V) |
618-628nm |
25℃,20α |
|
|
Πράσινος |
DIP346 |
1800-3000mcd |
110°(H); 50°(V) |
518-528nm |
25℃,20α |
|
|
Blue |
DIP346 |
400-600mcd |
110°(H); 50°(V) |
465-475nm |
25℃,20α |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
16mm |
|||||
|
Pixel Configuration |
DIP346 |
|||||
|
Density |
3,906 pixels/㎡ |
|||||
|
Module Resolution |
16εικονοκύτταρο(L) * 16εικονοκύτταρο(H) |
|||||
|
Module Dimension |
256mm(L) * 256mm(H) *30mm(ρε) |
|||||
|
Driving Mode |
Constant current, Static Driving Mode |
|||||
|
Module Mask |
Pure black mask—high contrast screen |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Λάμψη |
≥7,500 cd/㎡ |
|||||
|
Viewing Angle |
110°(Horizontal); 50°(Vertical) |
|||||
|
Best Viewing Distance |
≥16m |
|||||
|
Gray Grade |
14 κομμάτια |
|||||
|
Display Color |
4.4 trillion colors |
|||||
|
Ρύθμιση φωτεινότητας |
100 grades by software or automatically by sensor |
|||||
|
Max. Power Consumption |
35 W |
|||||
|
Control System |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1,920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, Δίσκο, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Θερμοκρασία εργασίας |
-20～+60 ºC |
|||||
|
Storage Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 ώρες |
|||||
|
MTBF |
5000 ώρες |
|||||
|
Continuous Operating Time |
≥72 hours |
|||||
|
Protection Grade |
IP65 |
|||||
|
Out-of-Control Pixel Rate |
≤0.01% |
|||||

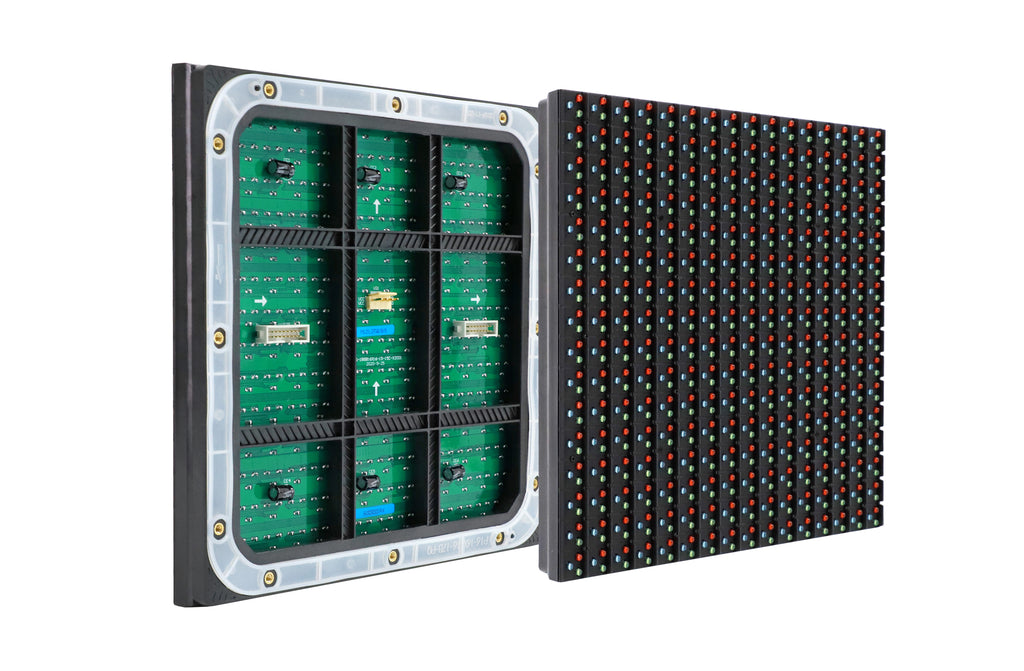

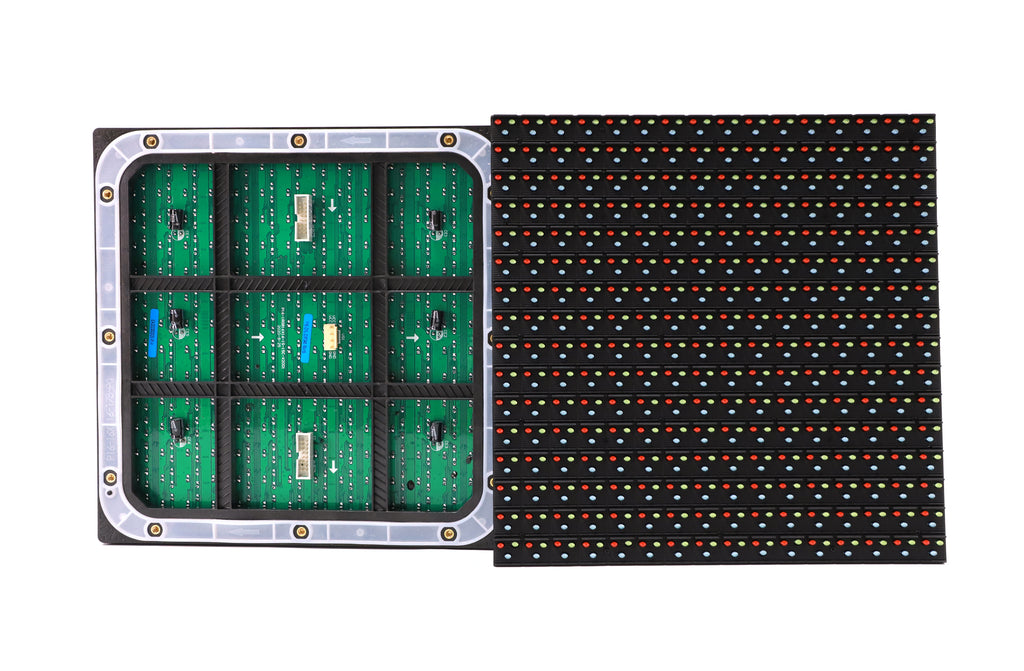

Most pictures of P16 Outdoor DIP LED Screen Module 256X256mm Static Driving:
Πρόσθετες πληροφορίες
| Μάρκα | Hite LED με ιστότοπο https://www.hdledisplay.com |
|---|---|
| Κώδικας προϊόντος | P16-O1L-DIP346-16×16 |
