Rong-Electric MD400PC4.2+3.2H LED display power supply

Rong-Electric MD400PC4.2+3.2H LED display Power Supply Features:

Malá velikost：L208mm*W58mm*H26mm
High efficiency：≥87% (see figure 4.3)
Small Leakage current：≤ 1.0mA (Vin=242Vac)
Output voltage range：Vo1:4.12—4.28Vdc Vo2:3.13—3.26Vdc
Wide operating temp. range：-30—70℃（+50℃—+70℃ linear de-rated，See Figure 4.2.）
Wide Input voltage range：180Vac—264Vac
Power factor：≥0.95
Cooling mode：Ventilation cooling
Protection Features：Output over-voltage protection、over-current protection、short-circuit protection.

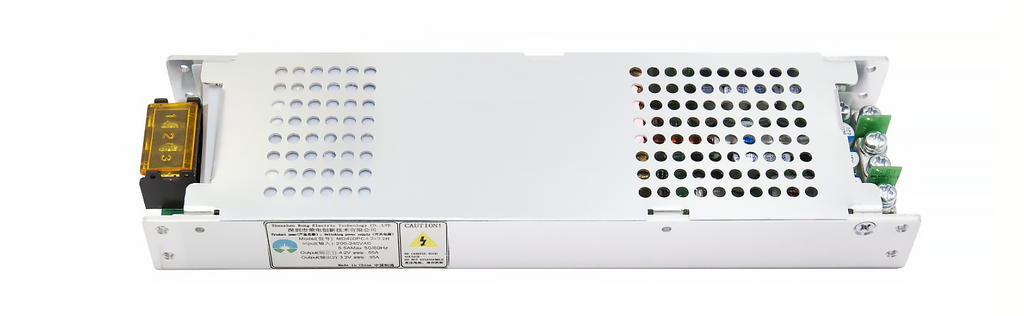

Rong-Electric MD400PC4.2+3.2H LED display Power Supply pictures:
