VDWALL LVP909F HD LED video processor with WIFI
$798.00
VDWALL LVP909F HD LED video processor with WIFI, VDWALL controllers are fit for indoor and outdoor led displays, rental or fixed led video walls.
Sa korisničkim priručnicima, Dodatak i igranje.
Direktna opskrba proizvođača, Sjajne cijene.
- Opis
- Dodatne informacije
- Recenzije (0)
- Raspitajte se sada
Opis
VDWALL LVP909F HD LED Video Processor With WIFI Features:
1. Seamless switching, Fade-in / Fade-out and wipe switching between any input signals. Multiple mixed analog
and digital inputs including 2xVideo, 1xVGA, 1xHDMI, 1xDVI, 1xSDI / HD-SDI / 3G-SDI
2. “TAKE” Brzo prebacivanje
3. Four sets of preset PIP display mode: seamless or fade-in / fade-out between modes switching
4. 4 windows in any size and overlay display. Prikaz 4 input signals picture at the same time. Each picture size,
position and overlay order are adjustable
5. Max output resolution 3840x2400_60Hz. Outputs: 4 x DVI, 1 x VGA. Each DVI port can output max
1920x1200_60Hz
6. Preview monitor + Sync monitor
7. Wi-Fi wireless control + Wi-Fi video feedback monitor: Wi-Fi video feedback function is realized through installing
APP software in handheld device to monitor input signals. Meanwhile, wireless Wi-Fi controls the device to
switch signals and call modes
VDWALL LVP909F HD LED Video Processor With WIFI Specification:
|
Inputs |
|||
|
Broj / Vrsta |
2×Video 1×VGA（RGBHV） 1×DVI（VESA / CEA-861） 1×HDMI（VESA / CEA-861） 1×SDI / HD-SDI / 3G-SDI |
||
|
Video system |
PAL / NTSC |
||
|
Composite Video Amplitude Impedance |
1V（p_p）/ 75Ω |
||
|
VGA format |
PC（VESA standard） |
≤2048×1152_60Hz |
|
|
VGA Amplitude Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
||
|
DVI format |
PC（VESA standard） |
≤1920×1200_60Hz |
|
|
HDMI1.3（CEA-861） |
|||
|
HDMI format |
PC（VESA standard） |
≤1920×1200_60Hz |
|
|
HDMI1.3（CEA-861） |
|||
|
SDI format |
SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz 576i_50Hz 720p、1080i、1080p |
|
|
Input connectors |
Video：BNC VGA：15pin D_Sub( female) DVI：24+1 DVI_D SDI：BNC/ 75Ω HDMI：HDMI port A type |
||
|
Outputs |
|||
|
Broj / Vrsta |
4×DVI, 1×VGA(RGBHV)（Out4） |
||
|
VGA / DVI format |
1024×768_60Hz 1280×1024_60Hz 1440x1440_60Hz 1920×1080p_50Hz/60Hz 1920×1200_60Hz |
||
|
Output connectors |
DVI OUT：24+5 DVI_I |
||
|
Others |
|||
|
Control port |
RS232 / USB / Lan / Wi-Fi |
||
|
input voltage |
100-240VAC 50/60Hz |
||
|
Potrošnja energije |
≤45W |
||
|
Environment Temperature |
0-45 ℃ |
||
|
Environment Humidity |
15-85% |
||
|
Product Size |
483(L) x 274(W) x 66.6(H)mm |
||
|
Package Size |
520(L) x 350(W) x 130(H)mm |
||
|
Net Weight |
4.2Kg |
||
|
Gross Weight |
5.9Kg |
||

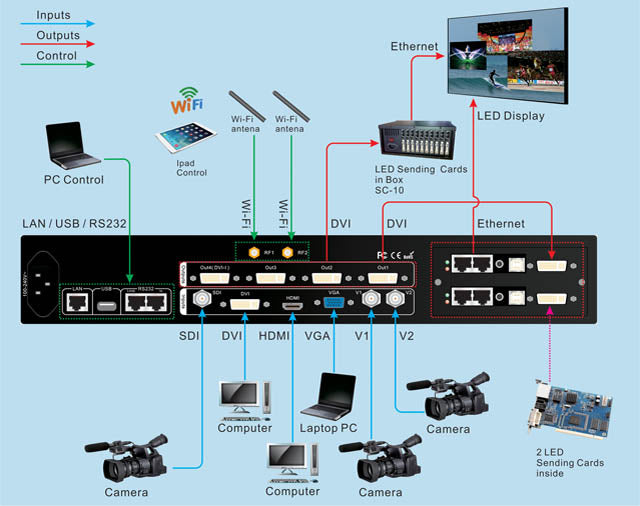

VDWALL LVP909F HD LED Video Processor With WIFI Connect Diagram

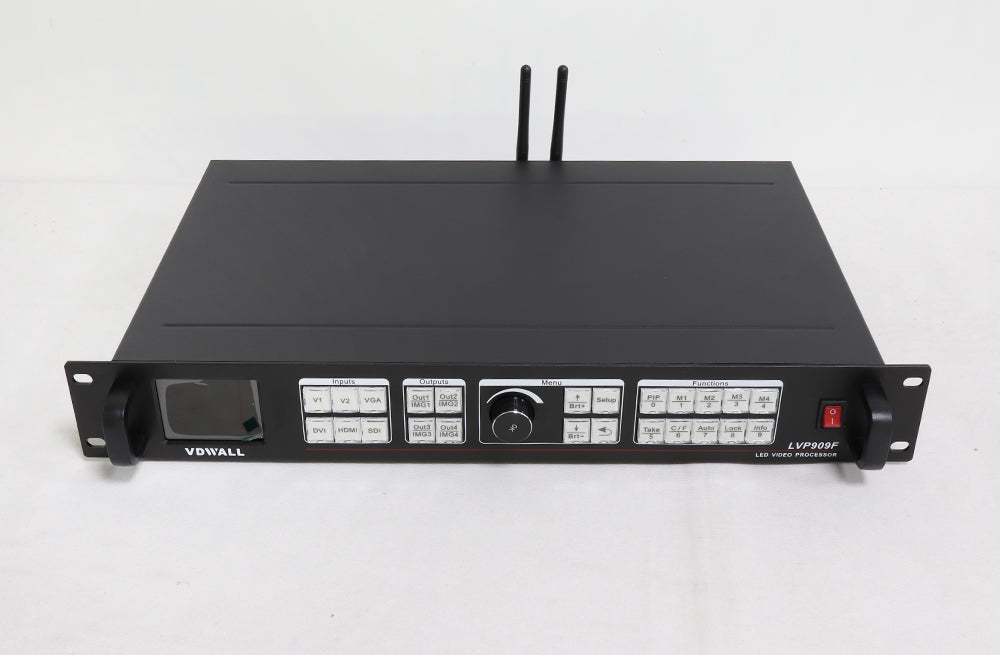

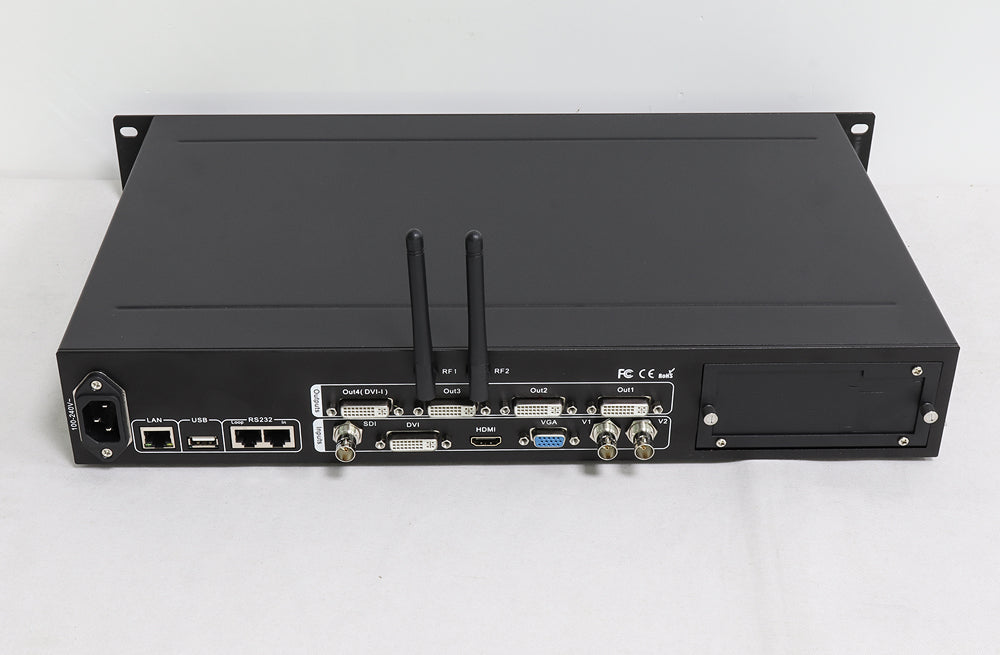

More Pictures of VDWALL LVP909F HD LED Video Processor With WIFI
Dodatne informacije
| Marka | VDWall |
|---|---|
| Šifra proizvoda | VDWALL-LVP909F |
