Novastar TU20 Pro LED display playback control processor

Novastar TU20 Pro LED Playback Control Processor Features：

1.Inputs and Outputs：

a.2x HDMI 1.3 inputs

b.3x USB 2.0 inputs for multimedia playback and
function extension

c.6x Ethernet outputs, capacity up to 3.9 miljoen
pixels

d.2x audio outputs
− 1x SPDIF digital audio output
− 1x 3.5-mm audio output

e.Output image scaling
− Width range: 800 na 4096 pixels
− Height range: 600 na 1920 pixels
− Total device load capacity ≤ 3.9 miljoen pixels

2.Device Controls:

a.Gigabit Ethernet control port with TCP/IP protocol
steunstuk

b.Low-power (less than 0.5 W) mode during standby,
and wakeup from standby via Infrared remote

c.A relays can be connected for convenient power
management of LED screen

d.Bluetooth 5.1
Can connect to the Bluetooth voice remote,
Bluetooth mouse, Bluetooth keyboard, Bluetooth
sound system and other common peripherals.

e.Compatible with the peripherals commonly used in
a meeting, such as camera, sound system and
laser pointer

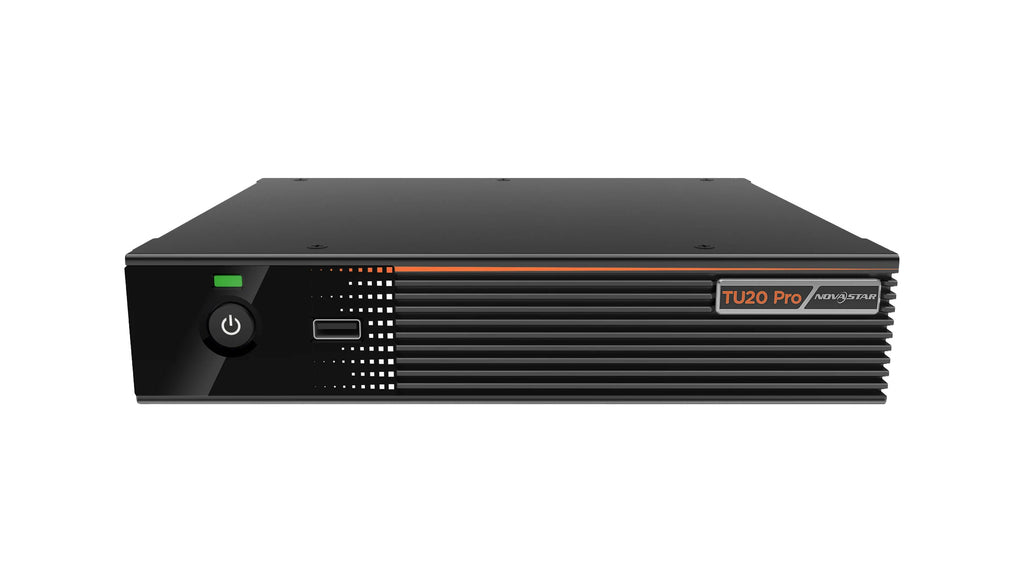

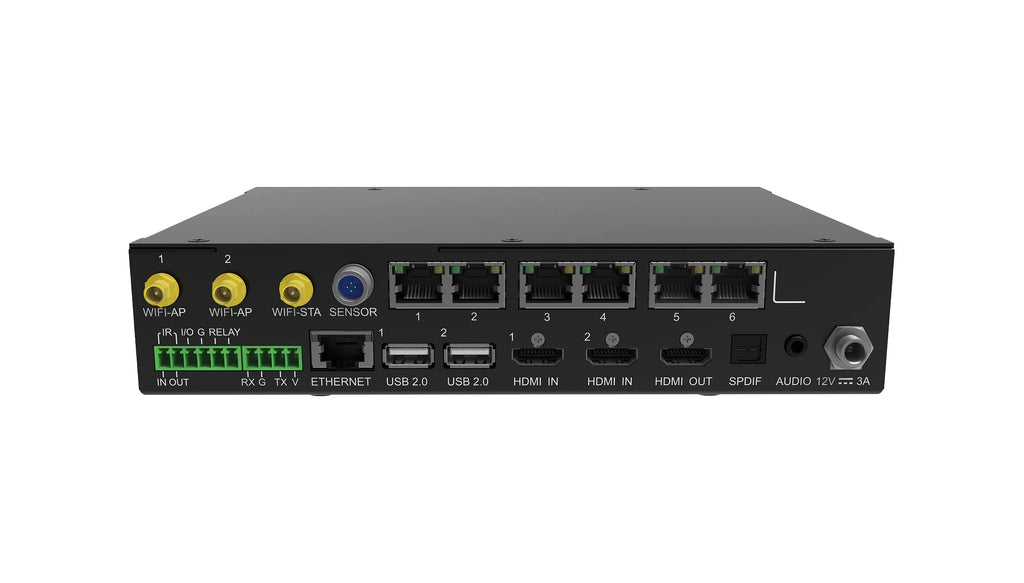

Novastar TU20 Pro LED Playback Control Processor pictures:
