Meanwell LRS-350-5 5V60A 300W LED power supply for video cabinets
$19.00
Meanwell LRS-350-5 5V60A 300W LED power supply for video cabinets. This led power supply is widely used in led displays and other led electronics.
Direct factory supply.
Good prices. stable quality.
- Beskrywing
- Bykomende inligting
- Resensies (0)
- Doen nou navraag
Beskrywing
Meanwell LRS-350-5 5V60A 300W LED Power Supply Features:
5V 60A 300W
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan with fan speed control function
1U low profile 30mm
LED indicator for power on
2 years warranty
UL passed
Case:806 Grootte:215×115×30mm
AC input voltage range———88-132VAC/ 176-264VAC selected by switch
Input frequency———————————47-63Hz
AC inrush current——————————–Cold start，40A/230VAC
DC adjustment range—————————–±10% rated output voltage
Line regulation（full load）————————≤0.5%
Output over load protection——-110%-150% hiccup mode，auto-recovery
Rise，hold up time——————–50mS，20mS at full load（typical）
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Werkstemperatuur—– -10~+40℃@100%，+60℃@60% load
Bergingstemperatuur—– -20℃~+85℃，20%~95%RH(non condensing)
Safety standards——Design refer to GB4943，UL60950-1,EN60950-1
EMC standards——- Design refer to GB9254，EN55022 class A
Koelmetode———————Forced air cooing by built-in DC fan

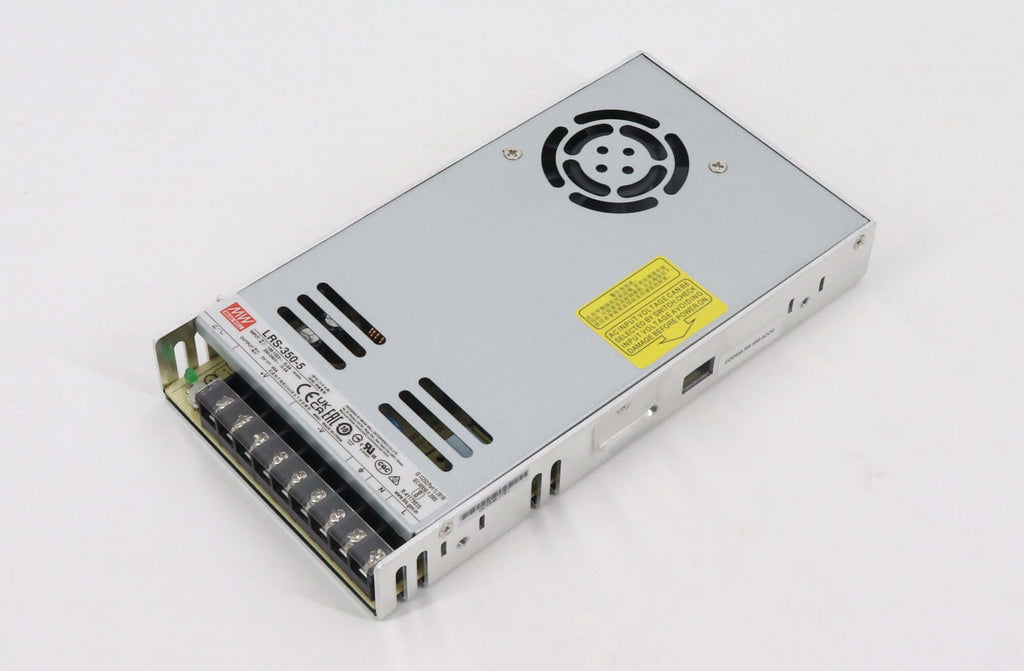

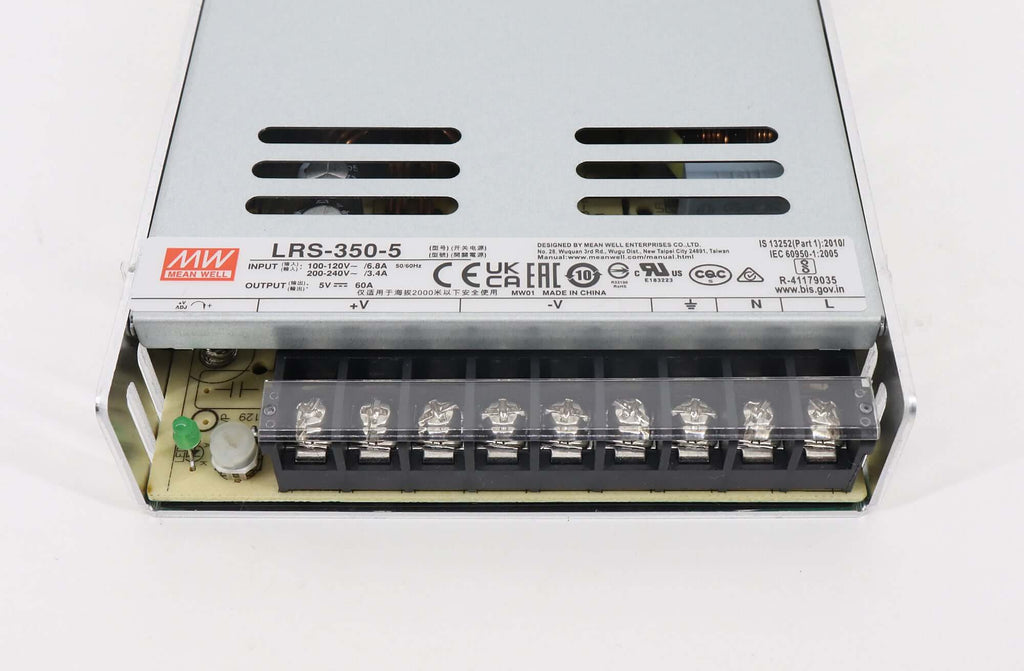

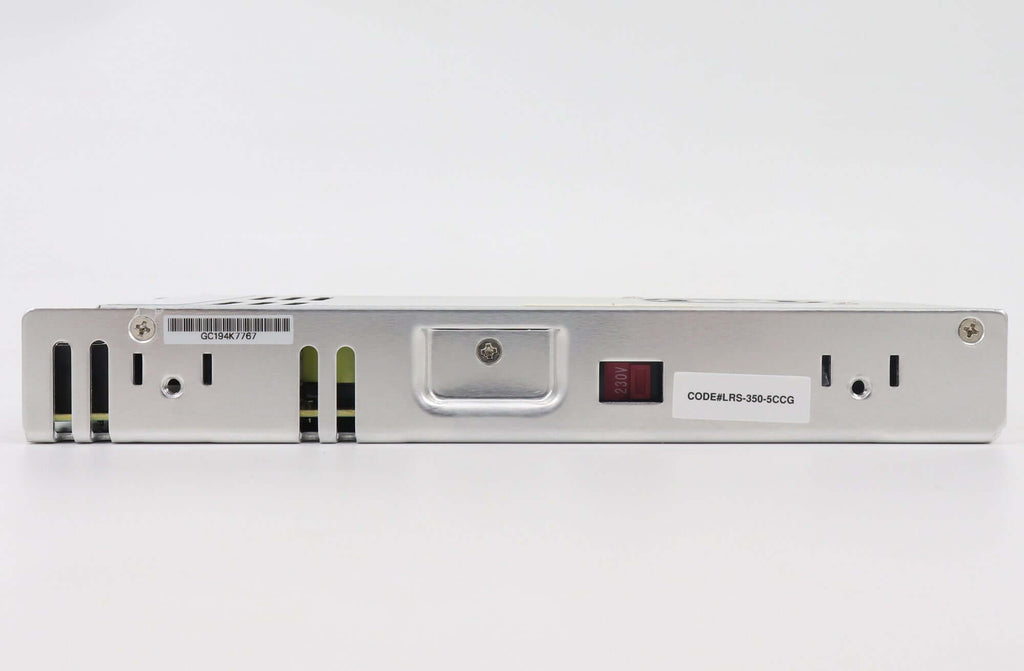

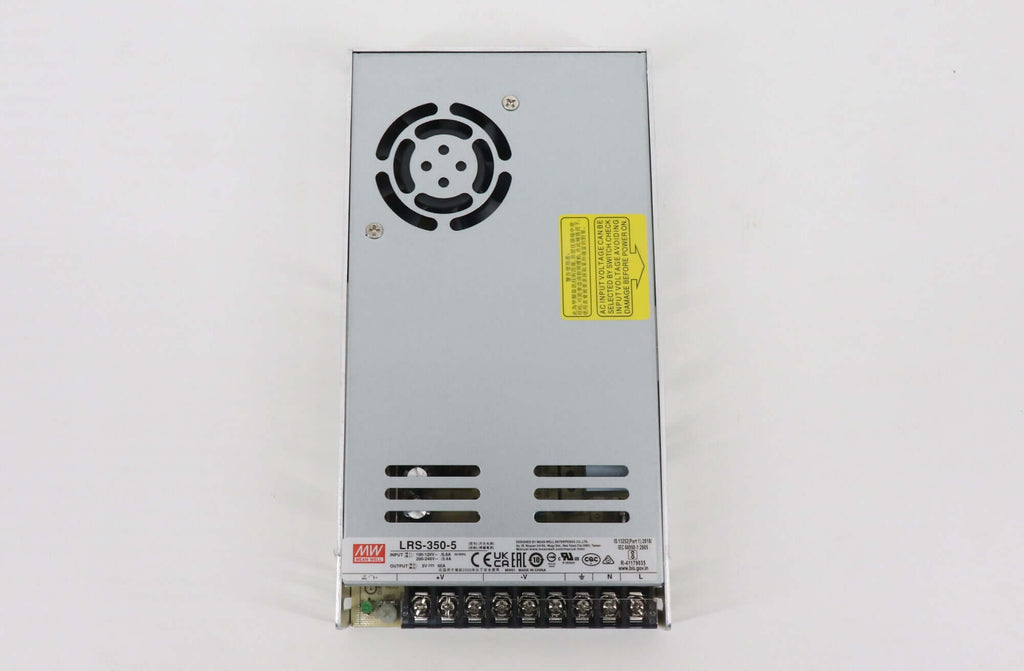

More Pictures of Meanwell LRS-350-5 5V60A 300W LED Power Supply:
Bykomende inligting
| Brandmerk | Meanwell |
|---|---|
| Produkkode | Meanwell-LRS-350-5 |
Resensies
Daar is nog geen resensies nie.
